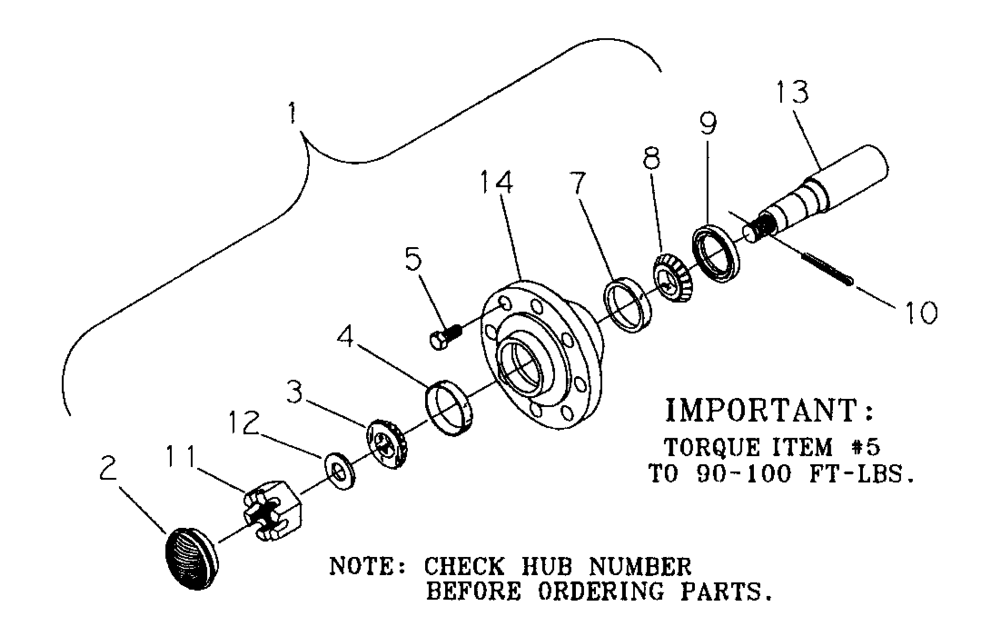

Запчасти Case IH 160 (44.100.01) - 783 HUB AND SPINDLE (09) - CHASSIS/ATTACHMENTS

1

28178300

HUB ASSY.

783, 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

5

495-61094

WASHER,7/8" x 2 1/4" x .16"

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore, Timken LM67048

1шт.

7

651817R1

BEARING CUP

2.33 OD, Timken LM67010

1шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2, NF x 1-15/32, Lug

6шт.

8

16408053

SPECIAL BOLT

1/2, NF x 1-15/32, Lug

6шт.

10

663558R1

BEARING CUP

2.89 OD, Timken LM501310

1шт.

9

28278300

HUB

With Cups, Inc. 7, 9, And 10

1шт.

9

NSS

NOT SOLD SEPARAT

With Cups, Inc. 7, 9, And 10

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 Bore, Timken LM501349

1шт.

12

145769C91

OIL SEAL

1.87, CR18823

1шт.

13

28378351

SPINDLE

1-7/8 Dia. Hole In Middle

1шт.

13

87327557

SPINDLE

1-7/8 Dia. Hole At End

1шт.

14

28078350

HUB ASSY.

And Spindle, Not Shown

1шт.
