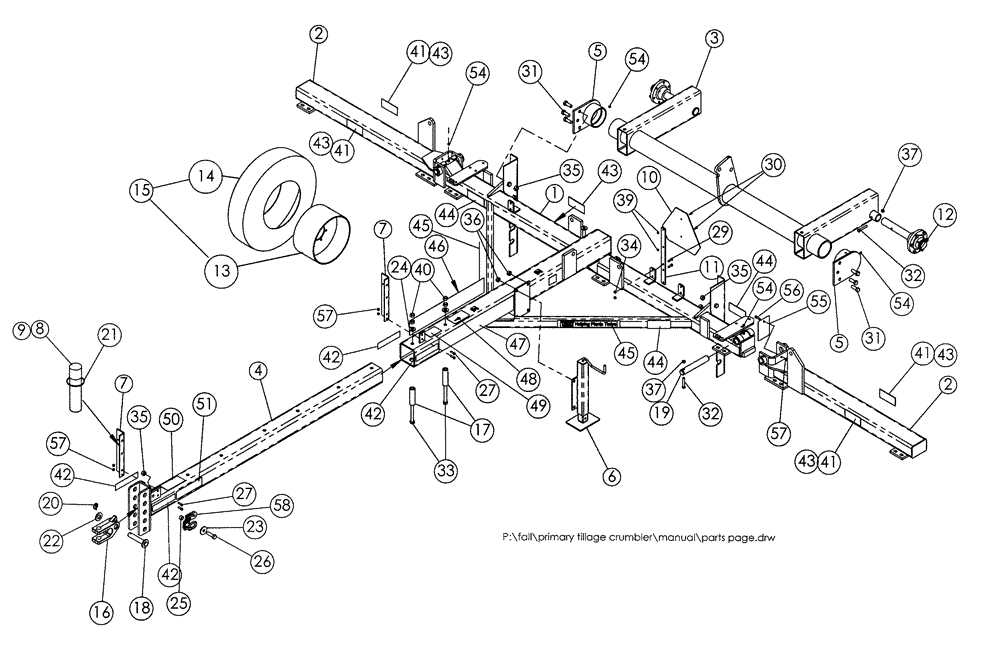

Запчасти Case IH 160 (39.100.01) - FRAME (09) - CHASSIS/ATTACHMENTS

1

87410166

BAR ASSY.

Main Frame, 17.5', 20', 22.5', And 25', Red

1шт.

1

87410168

BAR ASSY.

Main Frame, 15', Red

1шт.

1

06100100B

BAR ASSY.

Main Frame - 20' and 25' (Blue)

1шт.

1

06100150B

BAR ASSY.

Main Frame - 15' (Blue)

1шт.

1

06100250B

BAR ASSY.

Wing 20' (Blue)

2шт.

1

06100200B

BAR ASSY.

Wing - 25' (Blue)

2шт.

3

06100400

AXLE

Rock Shaft

1шт.

2

87410176

BAR ASSY.

20, Red

2шт.

2

87439105

SUPPORT ASSY.

17.5, Red

2шт.

5

06100300

BAR ASSY.

Rock Shaft, Pivot

2шт.

2

87439103

SUPPORT ASSY.

22.5, Red

2шт.

6

32223000

JACK ASSY.

7000#

1шт.

2

87410173

BAR ASSY.

25, Red

2шт.

7

06100114

BAR ASSY.

Hose Stand

2шт.

11

06000099

BRACE

SMV

1шт.

10

311860A1

EMBLEM

SMV

1шт.

2

87439103

SUPPORT ASSY.

22.5, Red

2шт.

11

06000099

BRACE

SMV

1шт.

4

87410178

BAR ASSY.

Pull Frame Extension, Red

1шт.

4

87410177

BAR ASSY.

Pull Frame Extension (Blue)

1шт.

12

28078351

HUB ASSY.

783

2шт.

14

NSS

NOT SOLD SEPARAT

9.5 x 15, 8-Ply, 1980928C1

2шт.

16

20092051

CLEVIS

Double

1шт.

8

30026030

TUBE

Manual Canister

1шт.

9

87418422

Operator's Manual

1шт.

17

06100119

SPACER

2шт.

18

14820444

SPECIAL PIN

1-1/4, Dia.

1шт.

19

14826841

SPECIAL PIN

1-5/8, Dia. Hinge

2шт.

20

A30338

PIN

1/4, Dia. x 1-3/4, Klik

1шт.

21

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

13

10108254

WHEEL

8 x 15, 6-Hole, Silver

2шт.

13

10108154

WHEEL

8 x 15, 6-Hole, (White)

2шт.

22

17421021

WASHER

1-1/4, Dia. x 1/4

1шт.

23

06000554

WASHER

1шт.

24

17413011

WASHER

13/16 x 1-1/2

2шт.

15

10008261

LAND WHEEL

9.5 x 15SL, 8-Ply, Silver

2шт.

15

10008156

WHEEL ASSY.

9.5 x 15SL, 8-Ply, (White)

2шт.

25

06000555

SPACER

1шт.

26

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

28

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

30

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

31

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

32

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

32

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

33

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

2шт.

34

86992213

NUT

3/8, NC, Hex

2шт.

34

231-4246

LOCK NUT,3/8"-16, GB

3/8, NC, Hex

2шт.

35

280375

NUT,3/4"-10, GC

7шт.

35

86992217

NUT

7шт.

37

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

38

18581000

PRODUCT GRAPHIC

SMV, Kit

1шт.

36

85700693

NUT,5/8" - 11, Gr C

4шт.

36

86992216

NUT

4шт.

39

86992211

NUT

1/4, NC, Stover

2шт.

40

425-1012

NUT,3/4"-10, G5

Hex., NC

4шт.

42

311864A1

REFLECTOR

Amber

7шт.

44

18534227

DANGER DECAL

3шт.

45

18534307

DECAL

Helping Plants Thrive

2шт.

41

18535021

DECAL

Case IH Logo

4шт.

41

18534261

DECAL

Case IH Logo

4шт.

46

87710279

DECAL

P/T crumbler, RH

1шт.

46

18534366

DECAL

P/T crumbler, RH

1шт.

47

87710276

DECAL

P/T crumbler, LH

1шт.

47

18534365

DECAL

P/T crumbler, LH

1шт.

48

18534282

WARNING DECAL

Important

1шт.

49

18534345

DECAL

Warning

1шт.

50

18534228

DECAL

Caution

1шт.

51

18534344

DECAL

Warning, Towing

1шт.

52

18510009

Warning, Towing

1шт.

54

219-86

LUBE NIPPLE,1/8" NPTF

Self Tap

4шт.

55

06100118

WEDGE

16 Ga.

1шт.

56

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

57

86992213

NUT

3/8, NC, Stover

6шт.

58

87398923

CHAIN

10,000 lb., Safety

1шт.

58

1337593C1

CHAIN

6,400 lb. Safety

1шт.
