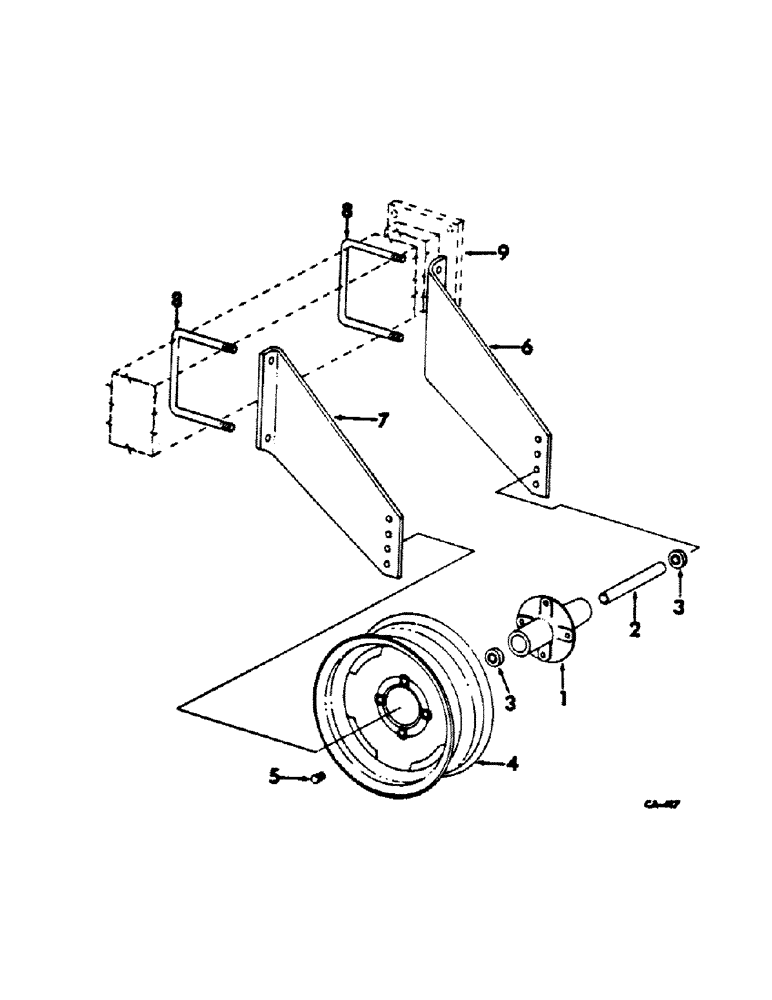

Запчасти Case IH 300 (C-07) - GAUGE WHEEL ATTACHMENT, FOR UNITS E THRU H

1

465418R1

HUB

wheel

2шт.

2

465423R1

PIPE

SPACER, wheel hub

2шт.

18065R1

BOLT,Hex, 5/8"-11 x 12", G2

5/8-11 x 12 znd hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.

3

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

wheel hub

4шт.

4

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

2шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

6

493935R1

ARM, wheel LH

2шт.

7

493936R1

ARM

wheel RH

2шт.

8

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

8шт.

9

TUBE ASSY

1шт.
