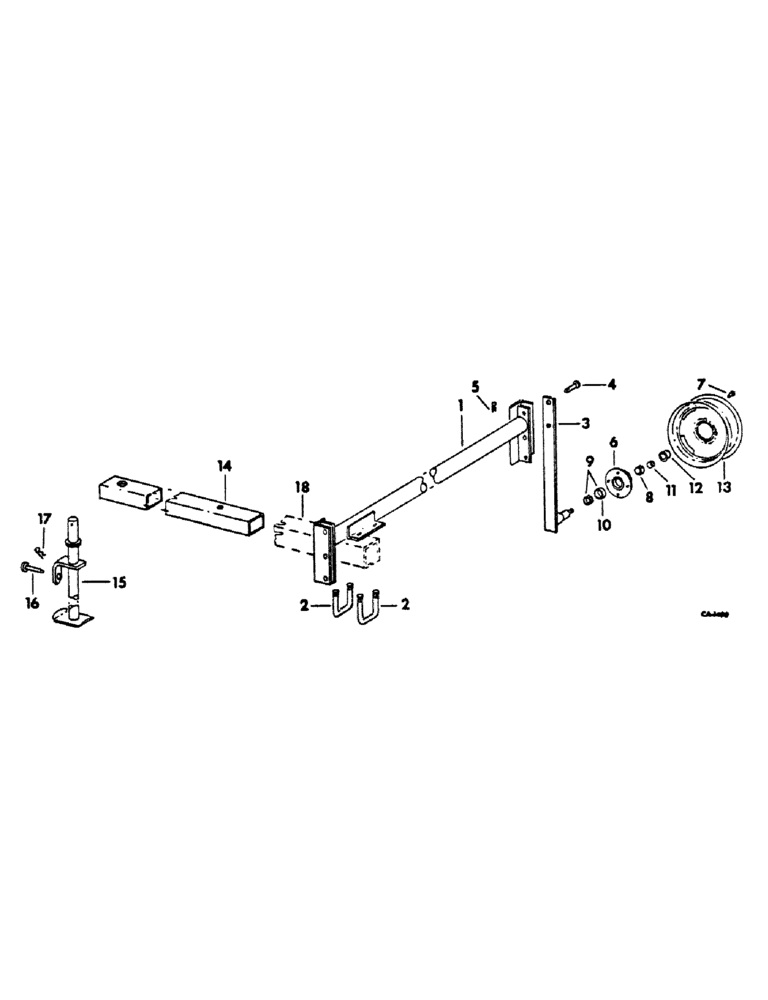

Запчасти Case IH 300 (C-06) - TRANSPORT ATTACHMENT, FOR UNITS E THRU H

1

546170R1

AXLE ASSY

1шт.

2

492989R2

BOLT,7/8" - 9 x 9"

U-BOLT, transport

2шт.

21224R1

WASHER

29/32 x 1-1/2 x 7 ga C-Z

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

546175R1

AXLE ASSY, wheel

2шт.

271822

BEARING ASSY

SCREW, 7/8-9 x 3-3/4 znd hex-hd cap

2шт.

21224R1

WASHER

29/32 x 1-1/2 x 7 ga C-Z

2шт.

21353R1

NUT, 7/8-9 nylon insert

2шт.

4

546177R1

PIN

transport

2шт.

5

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

6

472220R2

HUB

wheel

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga znd

2шт.

69442D

NUT

3/4-16 slt hex.

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str-lub

2шт.

7

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

8шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, outer cone

2шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, wheel hub inner cone

2шт.

10

651817R1

BEARING CUP

BEARING, inner cup

2шт.

10

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

11

651814R1

BEARING CUP

BEARING, outer cup

2шт.

12

651194R1

CAP

wheel brg hub

23шт.

13

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in., recommended tire size 8.50 x 14, 8.00 x 14, 7.50 x 14 or 7.00 x 14

1шт.

14

546167R1

TUBE, hitch

1шт.

21953R1

HEADED PIN,3/4" x 6"

PIN, 3/4 x 6 C-Z std-hd

1шт.

15

546168R2

STAND ASSY

1шт.

16

493990R2

PIN

transport tongue

1шт.

17

473865R91

LINCH PIN

PIN, quick attachable cot.

1шт.

20465R1

LOCK PIN,1/4" x 3 1/2", Slotted

Pin, 1/4" x 3 1/2", Slotted

1шт.

18

TUBE ASSY

1шт.

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

472222R1

SLEEVE

oil seal wear

2шт.
