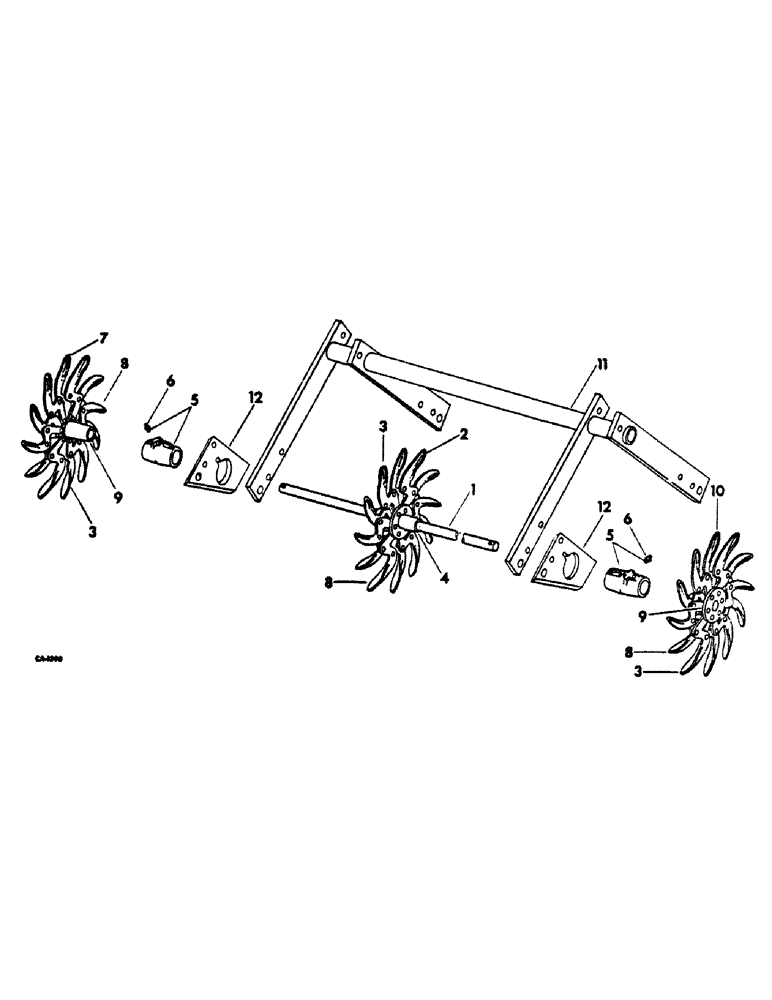

Запчасти Case IH 300 (C-05) - 18 IN. AND 21 IN. WHEELS, FOR UNITS A THRU H

1

487283R1

ROD, wheel, 2 used per section

1шт.

1

546166R1

AXLE, wheel, 2 used per section

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1-1/16 x 2 x 10 ga C-Z, 4 used per section

1шт.

21639R1

PIN, 5/16 x 1-1/2 C-Z self-opening cot., 4 used per section

1шт.

2

472821R91

WHEEL

ASSY, 18 in. center, 42 used for units A and B, 48 used for units C and D, 62 used for units E and F, 82 used for units G and H

1шт.

2

472828R91

WHEEL

ASSY, 21 in. center, 42 used for units A and B, 48 used for units C and D, 62 used for units E and F, 82 used for units G and H

1шт.

3

472819R1

TOOTH, 18 in. wheel inner

1шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing

1шт.

23654R1

RIVET,But Hd, 5/16" x 1 3/8"

5/16 x 1-3/8 cold rh-hd squeezing

1шт.

3

472826R1

TOOTH

21 in. wheel inner

1шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing

1шт.

23654R1

RIVET,But Hd, 5/16" x 1 3/8"

5/16 x 1-3/8 cold rh-hd squeezing

1шт.

4

472822R1

HUB, 18 in. wheel center

1шт.

4

472829R1

HUB

21 in. wheel center

1шт.

5

472815R21

TURNBUCKLE

BEARING W/FITTING, wheel hub, 4 used per section

1шт.

6

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type str lub, 4 used per section

1шт.

7

472816R92

WHEEL

ASSY, 18 in. outer LH, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

7

472823R92

WHEEL

ASSY, 21 in. outer LH, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

8

472820R1

TOOTH, 18 in. wheel outer

1шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing

1шт.

23654R1

RIVET,But Hd, 5/16" x 1 3/8"

5/16 x 1-3/8 cold rh-hd squeezing

1шт.

8

472827R1

TOOTH

21 in. wheel outer

1шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing

1шт.

23654R1

RIVET,But Hd, 5/16" x 1 3/8"

5/16 x 1-3/8 cold rh-hd squeezing

1шт.

9

472818R2

HUB

18 in. wheel outer

1шт.

9

472825R2

HUB

21 in. wheel outer

1шт.

10

472817R92

WHEEL ASSY, 18 in. outer RH, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

10

472824R92

WHEEL

ASSY, 21 in. outer RH, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

11

546162R1

FRAME ASSY, section

1шт.

12

546165R1

SUPPORT, brg, 4 used per section

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach, 8 used per section

1шт.

120384

WASHER,1/2"

LOCK, , 8 used per section 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 8 used per section 1/2"-13, G5

1шт.
