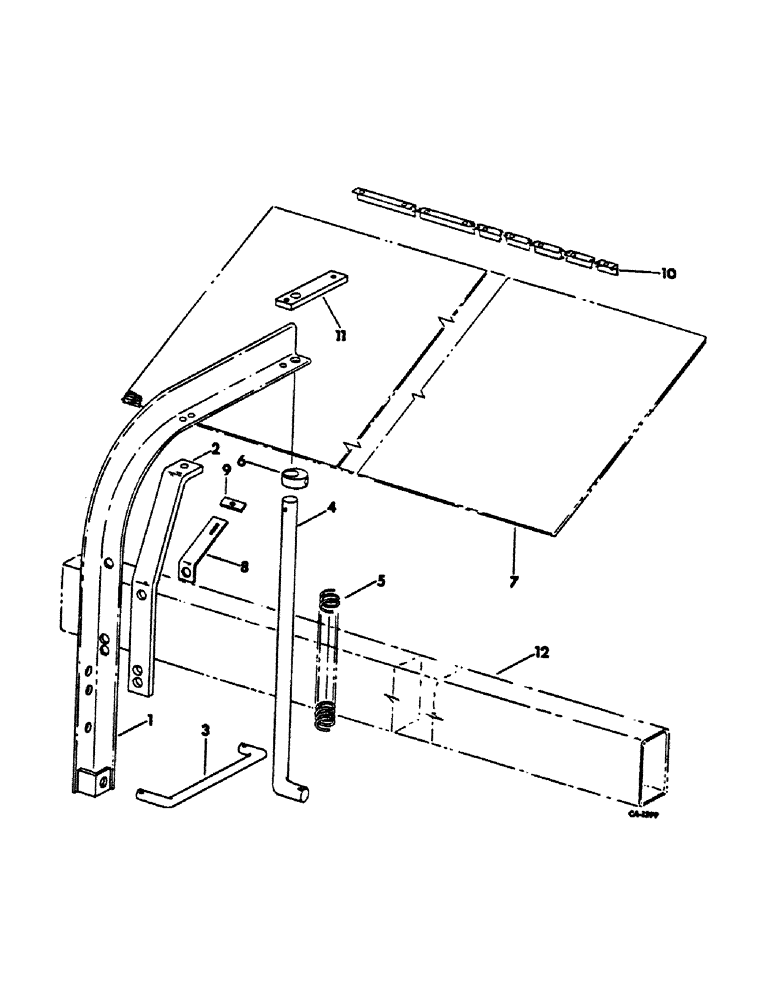

Запчасти Case IH 300 (C-03) - ANGLES AND SUPPORTS, FOR UNITS A THRU H

1

546150R1

ANGLE ASSY, lift, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

2

546153R1

BRACKET, lift, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 6 znd hex-hd mach, 12 used for units A and B, 16 used for units C and D

1шт.

18832R1

BOLT

5/8 x 1-3/4 znd hex-hd mach, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

18833R1

BOLT,Hex, 5/8" - 11 x 7"

5/8 x 7 znd hex-hd mach, 20 used for units E and F, 24 used for units G and H1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 18 used for units A and B, 24 used for units C and D, 30 used for units E and F, 36 used for units G and H 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 18 used for units A and B, 24 used for units C and D, 30 used for units E and F, 36 used for units G and H

1шт.

3

546154R1

ROD

pull, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

336112R1

WASHER, 25/32 x 1-1/4 x 11 ga C-Z, 12 used for units A and B, 16 used for units C and D, 20 used for units E and F, 24 used for units G and H

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

PIN, 1/4 x 3/4 x 11 C-Z cot., 12 used for units A and B, 16 used for units C and D, 20 used for units E and F, 24 used for units G and H

1шт.

4

546155R1

ROD

lift, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

21862R1

WASHER

19/32 x 1 x 11 ga C-Z, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

12 used for units A and B; 16 used for units C and D; 20 used for units E and F; 24 used for units G and H 3/16" x 1 1/2"

1шт.

5

479178R1

VALVE SPRING

SPRING, 6 used for units A and B, 8 used for units C and D, 10 used for units E and F, 12 used for units G and H

1шт.

6

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, locking, 12 used for units A and B, 16 used for units C and D, 20 used for units E and F, 24 used for units G and H

1шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup-pt set, 12 used for units A and B, 16 used for units C and D, 20 used for units E and F, 24 used for units G and H

1шт.

7

546157R1

SHIELD

1шт.

8

546158R1

BRACKET, shield

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 znd hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120376

NUT,5/16"-18, G5

10шт.

9

546159R1

BAR, retainer

8шт.

10

546160R1

ANGLE, shield

2шт.

11

546161R1

BAR, shield

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8-16 x 1 znd hex-hd cap

2шт.

274993

SHIELD

3/8-16 cad hex. lock

2шт.

12

TUBE FRAME

1шт.
