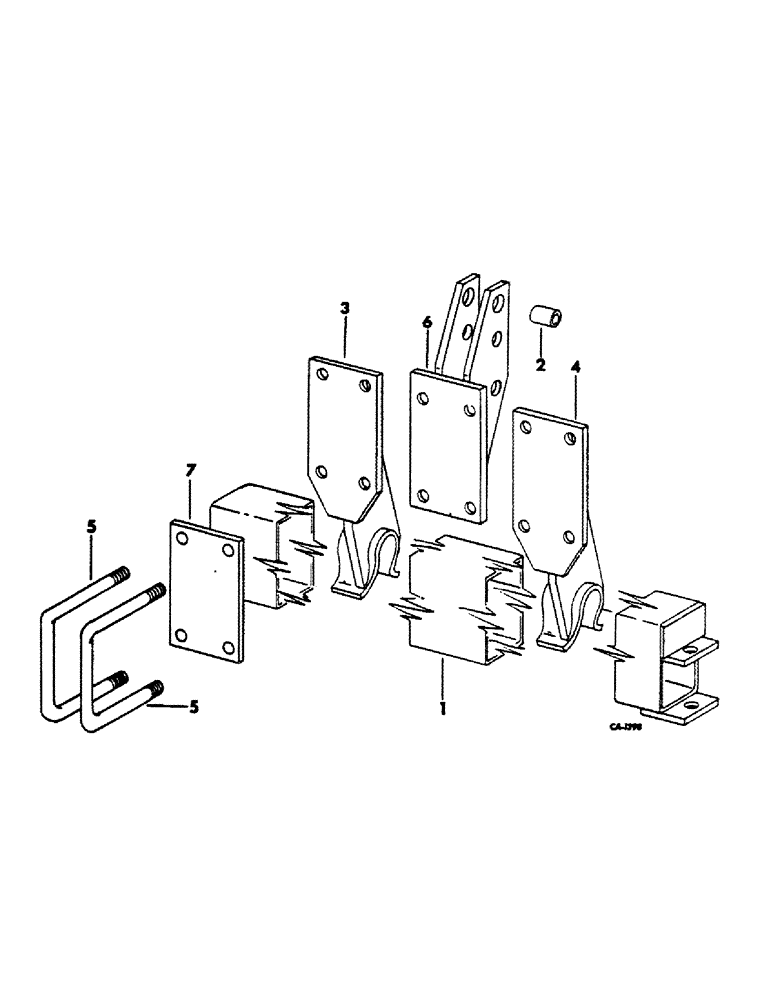

Запчасти Case IH 300 (C-02) - MAIN FRAME, FOR UNITS A THRU H

1

546141R1

TUBE FRAME, for units A and B

1шт.

1

546142R1

TUBE

ASSY, for units E and F

1шт.

1

546147R1

TUBE ASSY, for unit G and H

1шт.

1

546149R1

TUBE FRAME, for units C and D

1шт.

2

462425R1

SPACER

mast, for units E thur H

1шт.

3

492931R1

BRACKET

ASSY, hitch LH, for units E thru H

1шт.

4

492932R1

BRACKET

ASSY, hitch RH, for units E thru H

1шт.

5

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, for units E thru H

1шт.

23831R1

NUT,7/8"-9, G8

7/8-9 C-Z hex.

8шт.

6

492928R1

SUPPORT

MAST ASSY, hitch, for units E thru H

1шт.

7

493842R1

PLATE, mast, for units E thru H

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4-10 x 4-1/4 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.
