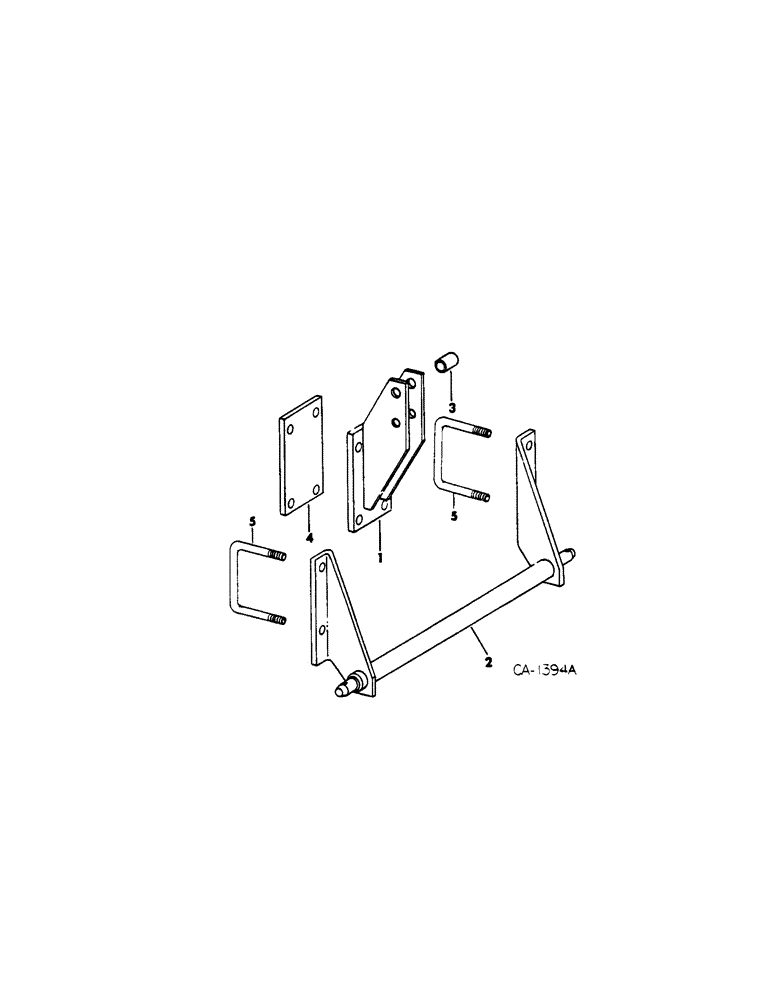

Запчасти Case IH 300 (C-10) - THREE-POINT HITCH CATEGORY II, FOR UNITS A THRU D

1

493466R2

SUPPORT

MAST ASSY, hitch

1шт.

2

492995R2

BRACKET

SPREADER BRACKET ASSY, category II

1шт.

18841R1

BOLT,Hex, 3/4"-10 x 4", G2

3/4 x 4 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

462425R1

SPACER

upper link

1шт.

4

542981R2

PLATE

1шт.

21136R1

BOLT, 5/8 x 6-1/4 type 5 Hex, 5/8"-11 x 6 1/4", G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

4шт.

5

493467R1

BOLT,3/4" - 10 x 5 1/2", Steel

U-BOLT

2шт.

22049R1

NUT,3/4"-10, G8

3/4-10 znd hex, replaces strap, 543008R1 and attaching hardware

8шт.
