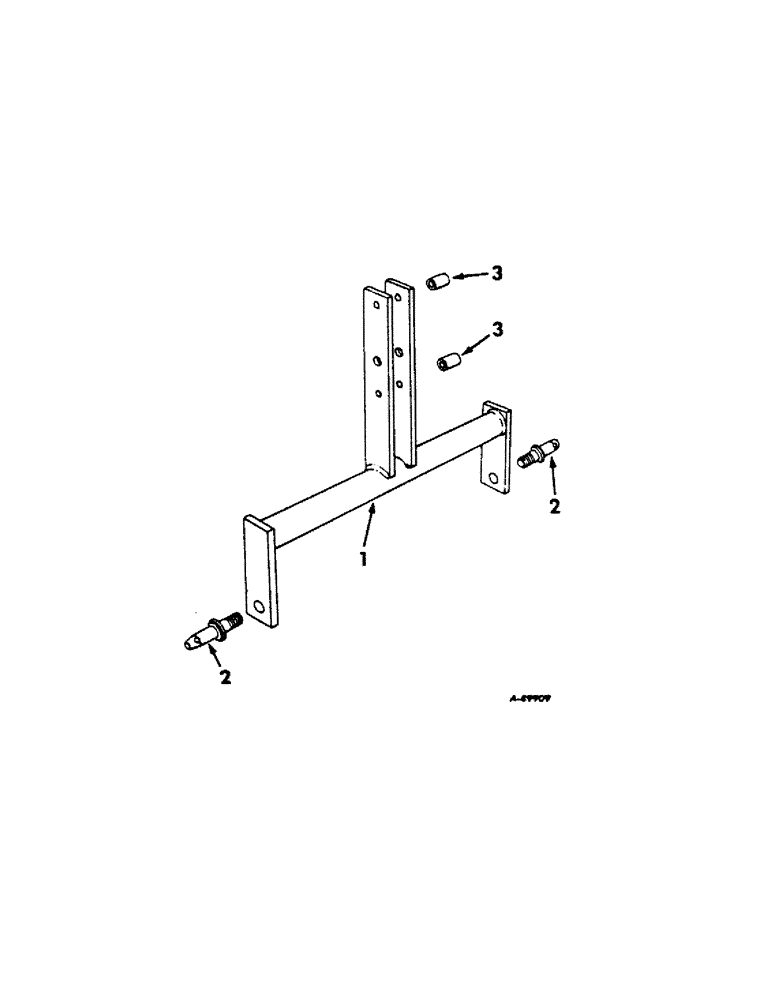

Запчасти Case IH 224 (B-5[A]) - THREE POINT HITCH

1

488389R1

SUPPORT ASSY, mast

1шт.

2

462425R1

SPACER

upper mast

2шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4 x 4-1/4 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

472790R1

STUD

lower link

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex

2шт.
