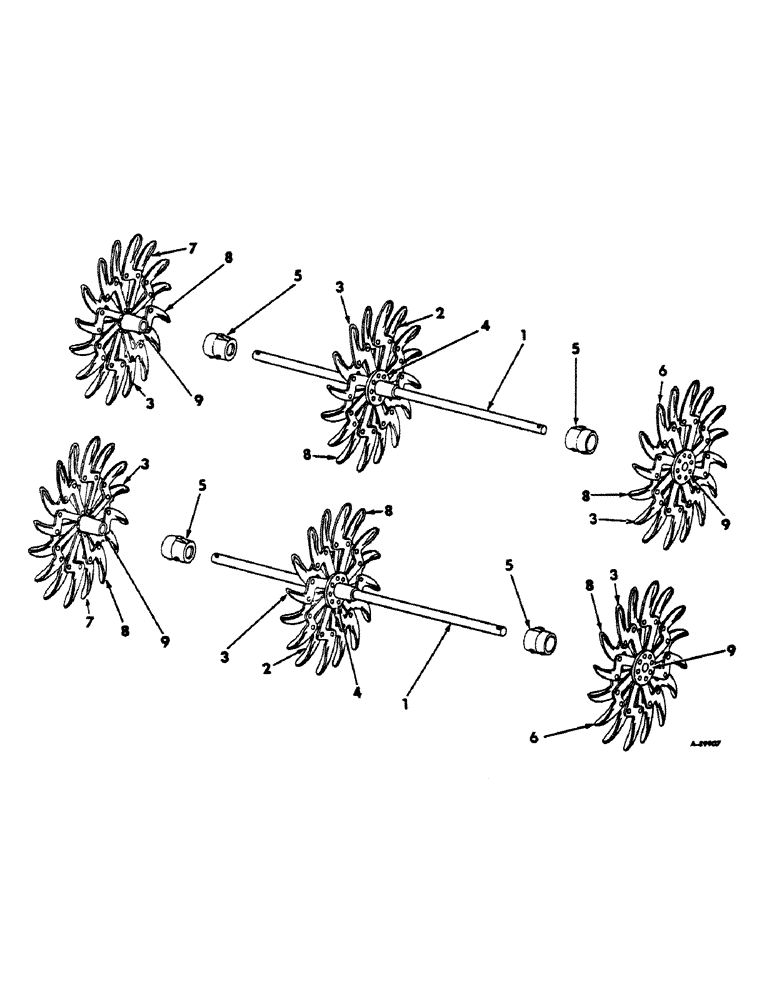

Запчасти Case IH 224 (B-4) - 21 IN. WHEELS, SHAFT AND BEARINGS

1

488383R1

ROD, wheel

16шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga C-Z

32шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

32шт.

2

472828R91

WHEEL

ASSY, 21 in. center

16шт.

3

472826R1

TOOTH

21 in. wheel inner, 8 per wheel

1шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing, 8 per wheel

1шт.

23654R1

RIVET,But Hd, 5/16" x 1 3/8"

5/16 x 1-3/8 cold rh-hd squeezing, 2 per tooth

1шт.

4

472829R1

HUB

21 in. wheel center

16шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing, 8 per wheel

1шт.

5

488382R1

BEARING, rod wheel

32шт.

6

472824R92

WHEEL

ASSY, 21 in. outer RH

16шт.

7

472823R92

WHEEL

ASSY, 21 in. outer LH

16шт.

8

472827R1

TOOTH

21 in. wheel outer, 8 per wheel

1шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing, 8 per wheel

1шт.

23654R1

RIVET,But Hd, 5/16" x 1 3/8"

5/16 x 1-3/8 cold rh-hd squeezing, 2 per tooth

1шт.

9

472825R2

HUB

21 in. wheel outer

16шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing, 8 per wheel

1шт.
