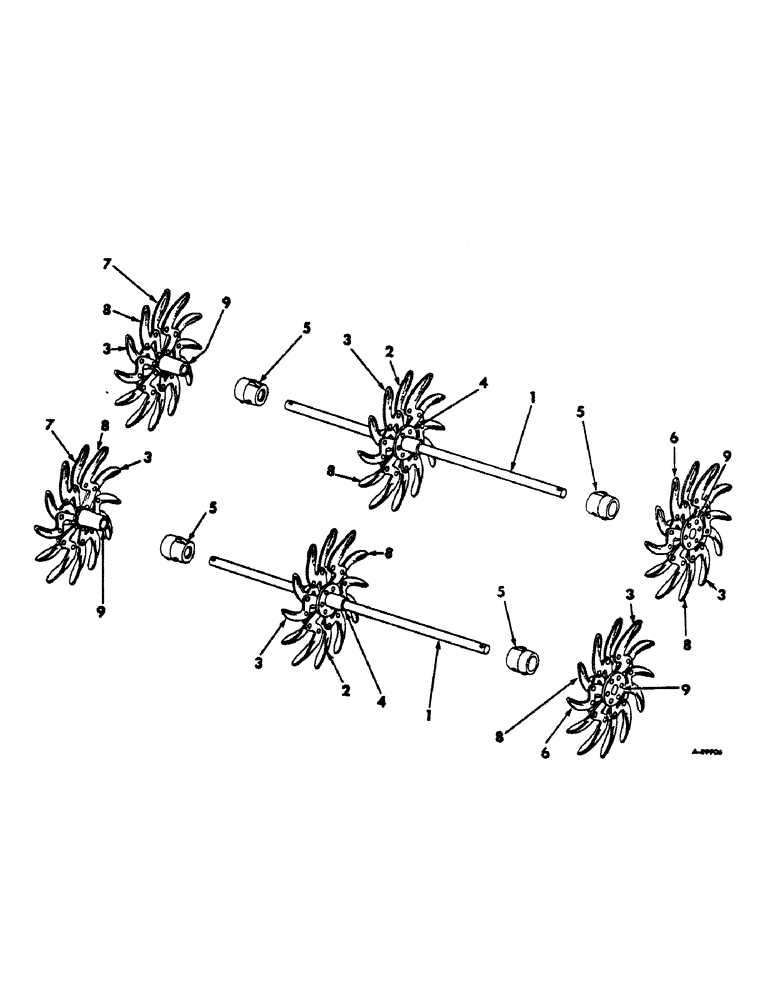

Запчасти Case IH 224 (B-3) - 18 IN. WHEELS, SHAFT AND BEARINGS

1

488383R1

ROD, wheel

16шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga C-Z

32шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

32шт.

2

472821R91

WHEEL

ASSY, 18 in. center

16шт.

3

472819R1

TOOTH, 18 in. wheel inner, 6 per wheel

1шт.

12047R1

RIVET, 5/16 x 1 cold rd-hd squeezing, 6 per wheel

1шт.

23654R1

RIVET,But Hd, 5/16" x 1 3/8"

5/16 x 1-3/8 cold rh-hd squeezing, 2 per tooth

1шт.

4

472822R1

HUB, 18 in. wheel center

16шт.

12047R1

RIVET, 5/16 x 1 cold rd-hd squeezing, 6 per wheel

1шт.

5

488382R3

BEARING, rod wheel

32шт.

6

472817R91

WHEEL ASSY, 18 in. outer RH

16шт.

7

472816R92

WHEEL

ASSY, 18 in. outer LH

16шт.

8

472820R1

TOOTH, 18 in. wheel outer, 6 per wheel

1шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing, 6 per wheel

1шт.

23654R1

RIVET,But Hd, 5/16" x 1 3/8"

5/16 x 1-3/8 cold rh-hd squeezing, 2 per tooth

1шт.

9

472818R2

HUB

18 in. wheel outer

16шт.

12047R1

RIVET, 5/16 x 1 cold rh-hd squeezing, 6 per wheel

1шт.
