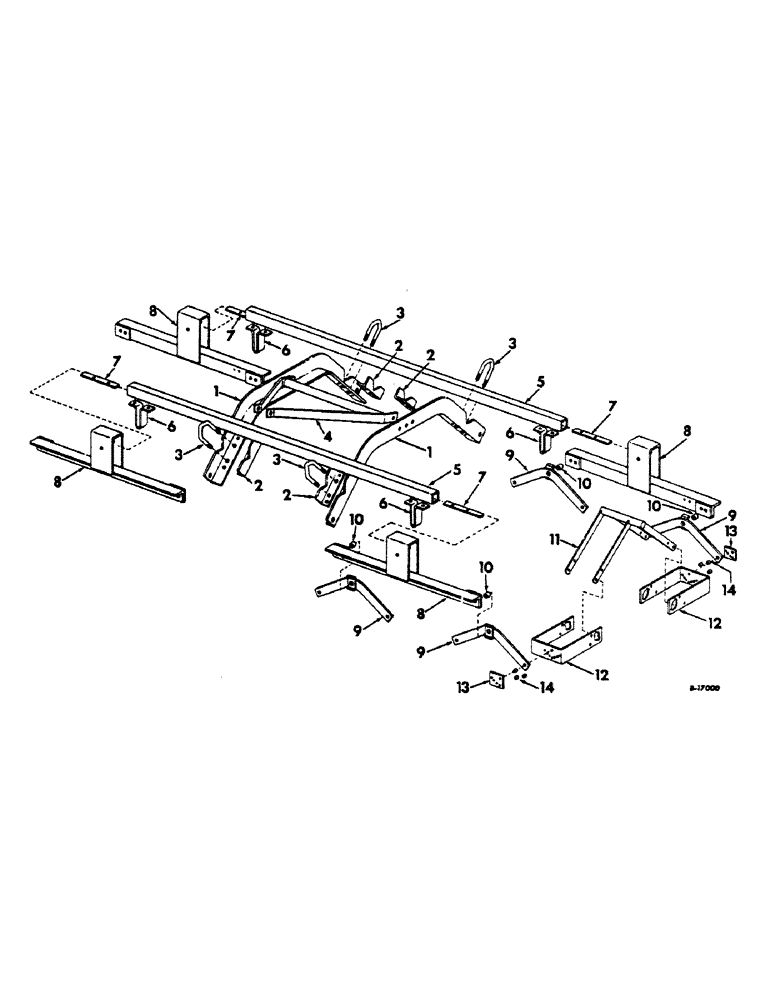

Запчасти Case IH 224 (B-2) - MAIN FRAME

1

488360R1

SUPPORT, center angle

2шт.

2

488361R1

ANGLE, clamp

4шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

3

488362R1

U-BOLT, angle clamp

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

4

488363R1

BRACE ASSY, hitch

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

5

488366R1

TUBE, frame

2шт.

5

492874R1

TUBE, frame, for expandable, 4 row

2шт.

6

488367R1

SUPPORT, stabilizer

4шт.

7

488368R1

BAR, stabilizer

4шт.

7

492875R1

BAR, stabilizer, for expandable, 4 row

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

8

488369R1

FRAME ASSY, double

4шт.

650355R1

AXLE PIN

PIN, 3/4 x 3-3/4 std-hd

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

4шт.

276326

KNIFE HEAD

PIN, 1/4 x 1-1/4 C-Z cot.

4шт.

9

488374R1

BRACE ASSY, full section spanner

8шт.

10

627389R1

SPACER,16.7mm ID x 22.23mm OD x 22.2mm L

spanner

8шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

8шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

8шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

8шт.

11

488377R1

FRAME ASSY, half-section

8шт.

12

488380R1

CHANNEL, frame gang

16шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

64шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 C-Z hex lock

64шт.

13

488381R1

BAR, gang pivot

16шт.

14

P24576

SPACER,3/8" Pipe x 11/16"

half-section

48шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

32шт.

274993

SHIELD

3/8-16 CDP hex. lock

32шт.

23884R1

BOLT, 7/16 x 1-3/4 znd dld hex-hd mach

16шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16-14 C-Z hex. lock

16шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

16шт.
