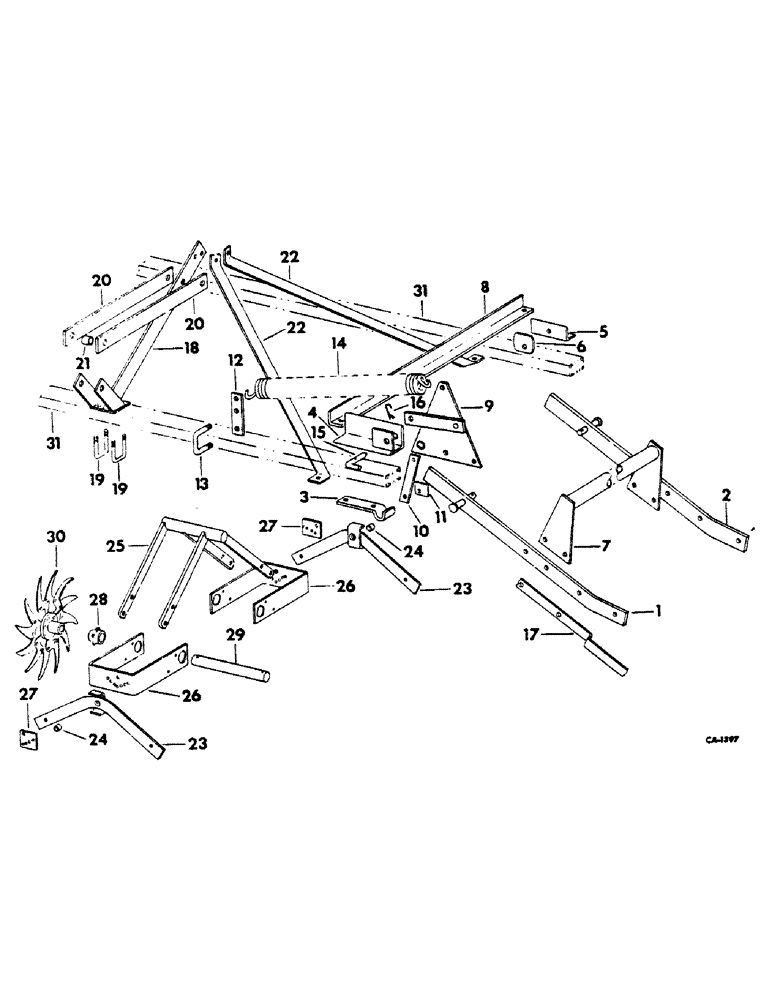

Запчасти Case IH 224 (B-6) - SIX-ROW CONVERSION PACKAGE, FOR 18 IN. AND 21 IN. WHEELS

1

492876R1

ARM ASSY, wing front LH

1шт.

1

492877R1

ARM ASSY, wing front RH

1шт.

2

492876R1

ARM ASSY, wing rear LH

1шт.

2

492877R1

ARM ASSY, wing rear RH

1шт.

3

492882R1

BRACKET, wing pivot

4шт.

4

492883R1

ANGLE ASSY, lock out LH

1шт.

4

492884R1

ANGLE ASSY, lock out RH

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 C-Z hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

5

492888R1

ANGLE, rear stop LH

2шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 C-Z hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

6

492890R1

STOP, rear

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

7

492891R1

TUBE ASSY, cross

2шт.

18174R1

BOLT,Hex, 3/4"-10 x 2 1/2", G2

3/4 x 2-1/4 C-Z hex-hd mach

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

8

492894R1

ANGLE, spreader

2шт.

20299R1

BOLT, 5/8 x 3-3/4 C-Z hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

9

492895R1

PLATE ASSY, spring LH

1шт.

9

492896R1

PLATE ASSY, spring RH

1шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

10

492900R1

RETAINER, spring plate

2шт.

11

492901R1

STOP, block

2шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

4шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

12

492902R1

BAR, spring

2шт.

13

492903R1

U-BOLT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

14

492904R1

SPRING, lift 65 5 coils

2шт.

15

492905R1

PIN, lockout

2шт.

16

517843R1

COTTER PIN

PIN, quick-attachable cot.

2шт.

17

492906R1

HANDLE

2шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

18

492907R1

SUPPORT ASSY, tube

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 3/4-10 x 5 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

19

478241R1

U-BOLT

2шт.

20

492916R1

BAR, upper support

2шт.

21

520168R1

SPACER

1шт.

18838R1

BOLT, 3/4 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

22

492911R1

BRACE, wing support LH

1шт.

22

492912R1

BRACE, wing support RH

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

2шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 C-Z hex-hd mach

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

23

492913R1

SUPPORT ASSY, full section

4шт.

24

627389R1

SPACER,16.7mm ID x 22.23mm OD x 22.2mm L

spanner

4шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

2шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 C-Z hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

4шт.

25

488377R1

FRAME ASSY, hoe unit

4шт.

26

488380R1

CHANNEL, frame gang

8шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

32шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 C-Z hex. lock

32шт.

27

488381R1

BAR, gang pivot

8шт.

P24576

SPACER,3/8" Pipe x 11/16"

24шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C-Z hex-hd

16шт.

274993

SHIELD

3/8-16 hex. lock

16шт.

23884R1

BOLT, 7/16 x 1-3/4 znd old hex-hd mach

8шт.

272072

HYD TUBE

7/16-14 C-Z slt hex.

8шт.

648002

KNIFE

1/8" x 3/4"

8шт.

28

488382R3

BEARING, rod wheel

16шт.

29

488383R1

ROD, wheel

8шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga C-Z

16шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

16шт.

30

472816R92

WHEEL

ASSY, 18 in. outer LH

8шт.

30

472817R92

WHEEL ASSY, 18 in. outer RH

8шт.

30

472821R91

WHEEL

ASSY, 18 in. center

8шт.

30

472823R92

WHEEL

ASSY, 21 in. outer LH

8шт.

30

472824R92

WHEEL

ASSY, 21 in. outer RH

8шт.

30

472828R91

WHEEL

ASSY, 21 in. center

8шт.

31

TUBE, frame

1шт.
