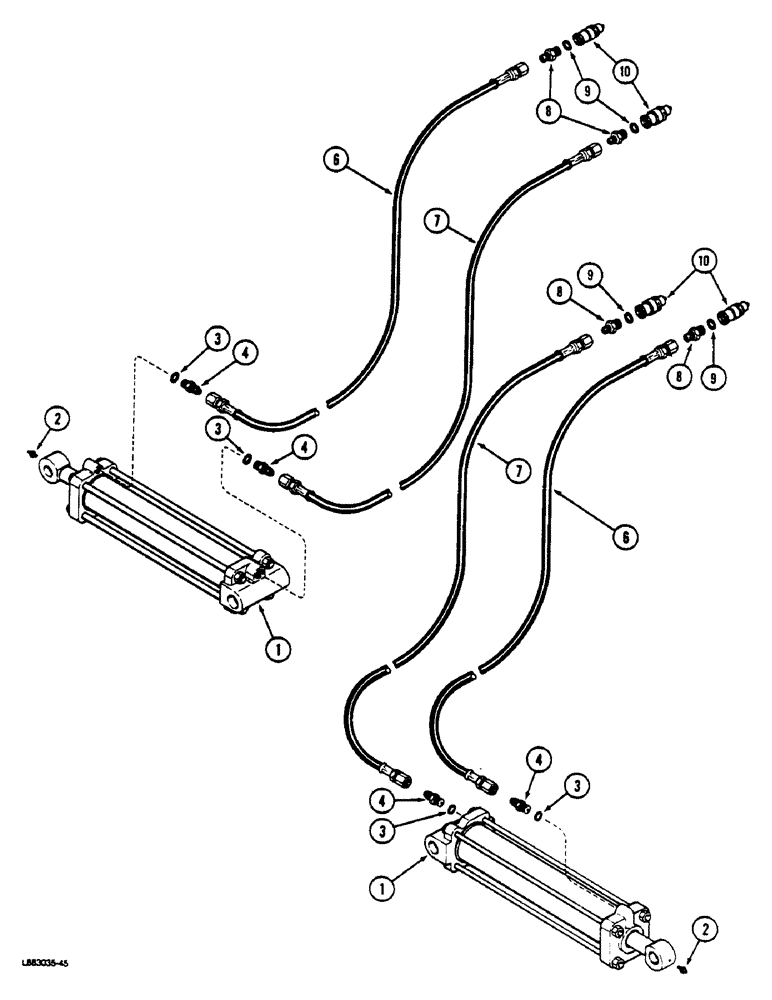

Запчасти Case IH 181 (8-02) - FRAME FOLD HYDRAULIC CIRCUIT, 20-1/2 FOOT HOE, PRIOR TO P.I.N. JAG 0211512 (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - frame fold, 181 standard hoe (See Figure 8-08

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - frame fold, 181 minimum tillage hoe (See Figure 8-10)

2шт.

2

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

2шт.

4

95750C1

HYD CONNECTOR

CONNECTOR - restrictor

4шт.

6

810570C2

HYDRAULIC HOSE

HOSE - cylinder rod end, 90 inch long

2шт.

7

95778C1

HYDRAULIC HOSE,9.65 mm ID x 1778.00 mm, SAE 100 R1

Cylinder Base End 9.65 mm ID x 1778.00 mm, SAE 100 R1

2шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, If used

4шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, if used

4шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used with 218-5354 adapter

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 218-5058 adapter

1шт.

10

1341843C1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread poppet type

4шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
