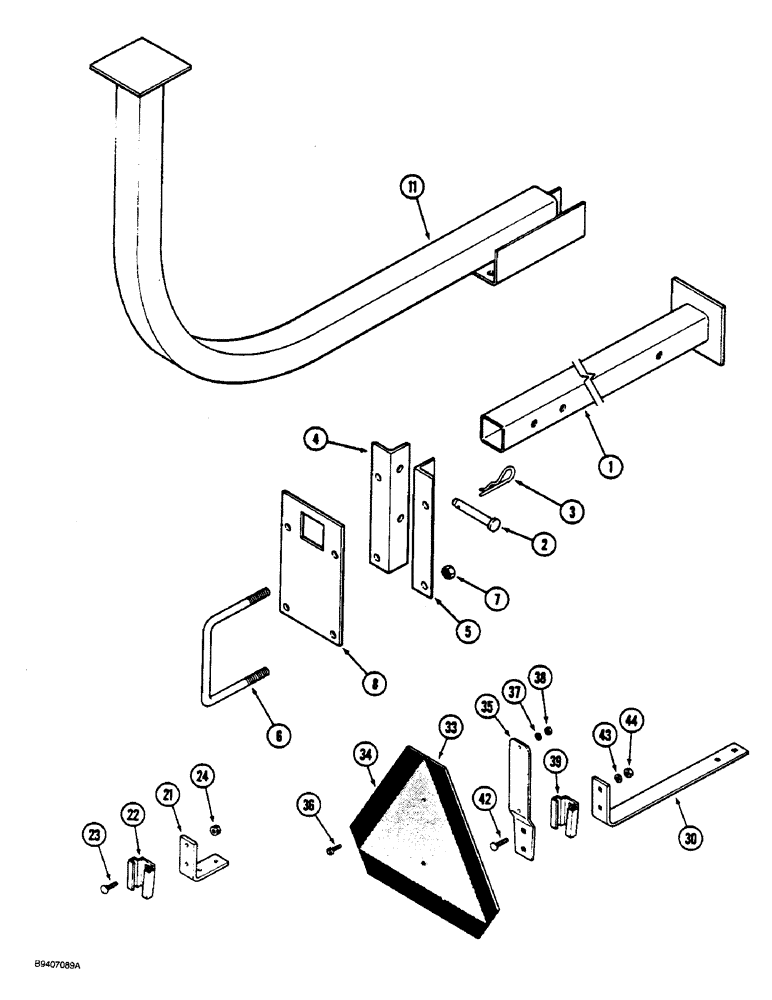

Запчасти Case IH 181 (9-34) - STORAGE STAND (09) - CHASSIS/ATTACHMENTS

1

145132C1

STAND

- storage

1шт.

2

147245C1

PIN,15.88mm OD x 104mm L

- stand

1шт.

3

1978738C1

HAIR PIN COTTER

3/16" diameter

1шт.

4

1264472C1

ANGLE

BRACKET - stand angle, left-hand

1шт.

5

1264473C1

ANGLE

BRACKET - stand angle, right-hand

1шт.

6

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- frame retaining, 5 x 7 inch toolbar

2шт.

6

1250813C1

U-BOLT

- frame retaining, 7 x 7 inch toolbar

2шт.

7

231-41110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

8

149485C1

BAR

PLATE - stand tie

1шт.

11

1254184C2

STAND

- rear storage

1шт.

21

149581C1

SUPPORT

- transport lamp

1шт.

22

A59457

BRACKET

- lamp support, transport

1шт.

23

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, Transport lamp support

4шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC, transport lamp support

4шт.

30

1978664C1

BRACKET

- SMV support (Folding frame hoe only) (Minimum tillage),emblem

1шт.

33

A59450

WARNING SIGN

EMBLEM ASSEMBLY - slow moving vehicle

1шт.

34

321-4311

DECAL

- SMV emblem

1шт.

35

NSS

NOT SOLD SEPARAT

BRACKET - emblem support, slow moving vehicle

1шт.

36

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head, No. 10 UNC x 1/2 inch, slow moving vehicle emblem

2шт.

37

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

- flat, 7/32 x 1/2 x 1/32 inch, slow moving vehicle emblem

2шт.

38

225-14110

NUT,#10-24

Machine, SMV emblem #10-24

2шт.

39

A59457

BRACKET

- SMV mounting, slow moving vehicle emblem

1шт.

42

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, SMV emblem

2шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , SMV emblem 5/16"

2шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Slow moving vehicle emblem

2шт.
