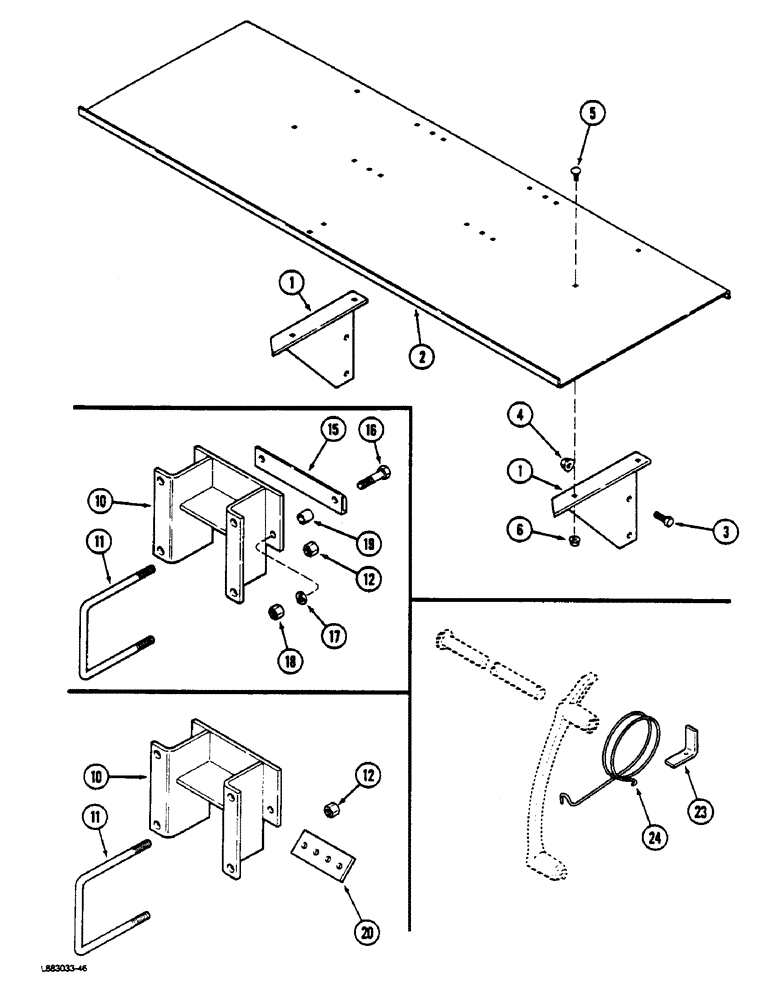

Запчасти Case IH 181 (9-32) - ROCK SHIELD (09) - CHASSIS/ATTACHMENTS

1

1254123C1

SUPPORT

- shield

2шт.

2

1254124C2

SHIELD

- rock

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

5

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

4шт.

10

1279558C2

BRACKET

- weight mounting

2шт.

11

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- bracket retaining, 5 x 7 inch toolbar, weight

4шт.

11

1250813C1

U-BOLT

- bracket retaining, 7 x 7 inch toolbar, weight

4шт.

12

425-1010

NUT,5/8"-11, G5

Weight bracket 5/8"-11, G5

8шт.

15

1279561C1

ANGLE

- weight retaining, used when 3 International style 100 lb (45.4 kg) tractor front end weights are installed, weight bracket

2шт.

16

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch, weight bracket

4шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Weight bracket 5/8"

4шт.

18

425-1010

NUT,5/8"-11, G5

Weight bracket 5/8"-11, G5

4шт.

19

529380R1

SPACER

- hitch lock, weight bracket

4шт.

20

96107C1

BAR

- weight retainer, used when 4 Case style 75 lb (34 kg) tractor front end weights are installed, bracket

2шт.

23

95715C1

BRACKET

- spring helper

6шт.

24

95716C1

SPRING

- helper

6шт.
