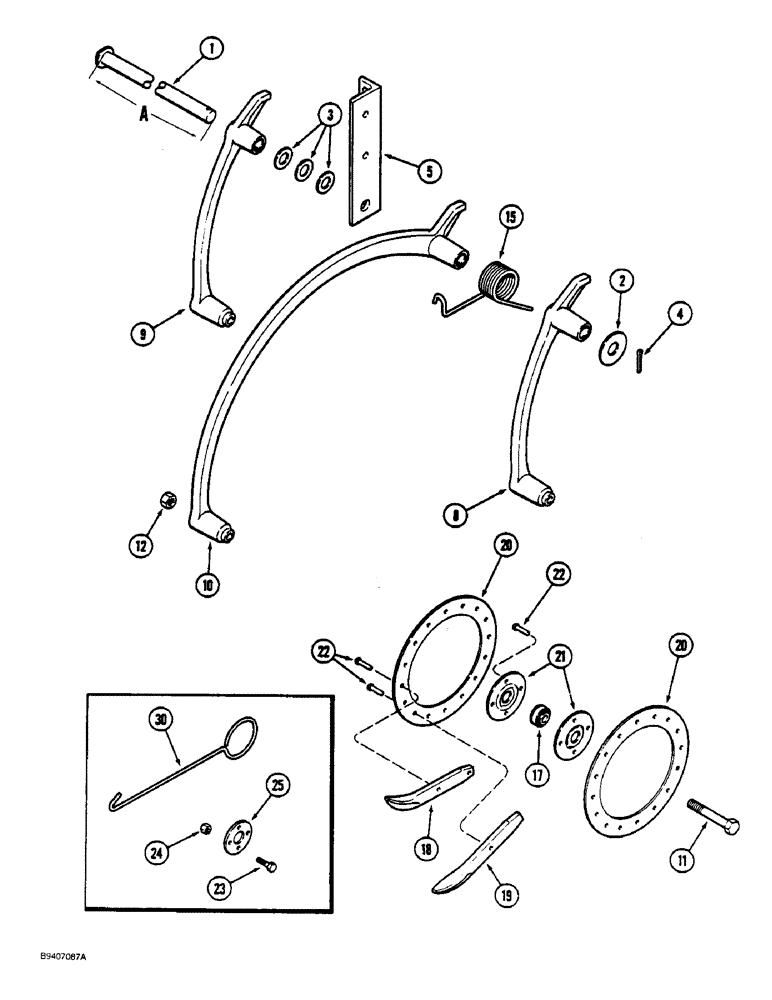

Запчасти Case IH 181 (9-28) - HOE GANG, 181 MINIMUM TILLAGE ROTARY HOE (09) - CHASSIS/ATTACHMENTS

1

147240C1

SHAFT

- hoe gang, 12 wheel, "A" dimension is 41-11/16 inch (See Note B)

1шт.

1

149281C1

SHAFT

- hoe gang, 14 wheel, "A" dimension is 48-11/16 inch (See Note C)

1шт.

1

149358C1

SHAFT

- hoe gang, 8 wheel, "A" dimension is 27-11/16 inch (See Note D)

1шт.

1

1264175C1

SHAFT

- hoe gang, left-hand, 11 wheel, "A" dimension is 38-3/16 inch (See Note E)

1шт.

1

149551C1

SHAFT

- hoe gang, right-hand, 11 wheel, "A" dimension is 38-7/8 inch (See Note E)

1шт.

2

144801C1

WASHER

- retaining

1шт.

3

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32"

1шт.

4

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

5

147242C1

ANGLE

BRACKET - gang mounting

1шт.

8

1333701C1

ARM

- gang wheel, long hub

1шт.

9

1333702C1

ARM

- gang wheel, short hub

1шт.

10

1960317C1

ARM

- gang wheel, long

1шт.

11

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex, 5/8 NC x 4-1/4 inch

1шт.

12

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex lock, 5/8 inch NC

1шт.

15

1980777C1

SPRING

- gang tension

1шт.

1969297C2

FURROW WHEEL

WHEEL - hoe gang

1шт.

17

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

BEARING - gang wheel

1шт.

18

1969423C1

TOOTH

- hoe gang, 2 hole

4шт.

19

1969424C1

TOOTH

- hoe gang, secondary

12шт.

20

1969425C2

RING

- gang wheel

2шт.

21

1969426C2

HUB

- gang wheel

2шт.

22

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- button head, 1/4 x 1-1/8 inch

1шт.

23

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

1шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

1шт.

25

149178C2

WASHER

- bearing retaining

1шт.

30

1264493C1

ROD

TOOL - gang spring hook

1шт.
