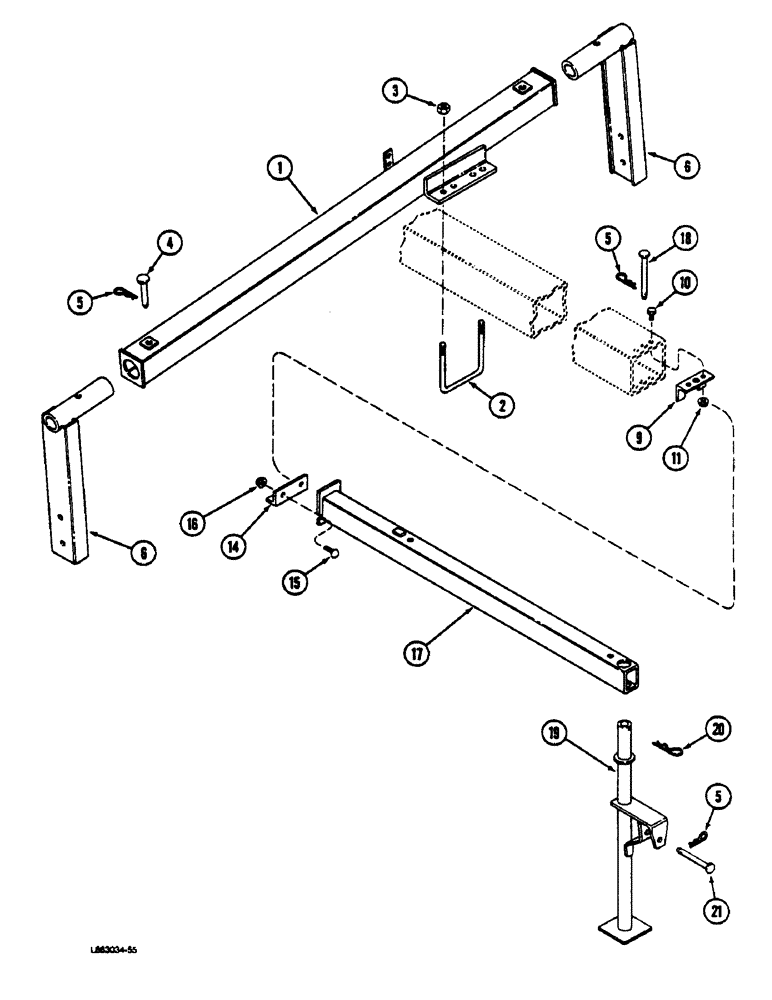

Запчасти Case IH 181 (9-22) - TRANSPORT ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

145092C3

TUBE,634 mm Length

FRAME - transport

1шт.

2

492989R2

BOLT,7/8" - 9 x 9"

U-BOLT - 7/8 inch NC (5 x 7 inch toolbar)

2шт.

2

493841R1

U-BOLT

- 7/8 inch NC (7 x 7 inch toolbar)

2шт.

3

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

4

145130C1

PIN

- transport

2шт.

5

1978738C1

HAIR PIN COTTER

3/16" diameter

4шт.

6

145088C1

SOCKET

SUPPORT - wheel arm socket

2шт.

9

149441C1

ANGLE

BRACKET - guide angle (5 x 7 inch toolbar)

1шт.

9

149442C1

ANGLE

BRACKET - guide angle (7 x 7 inch toolbar)

1шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

14

149522C1

ANGLE

BRACKET - sway bar angle

1шт.

15

149567C1

BOLT

- special, 1/2 inch NC

2шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

17

141255C1

TUBE

BAR - hitch sway

1шт.

18

141251C1

PIN

- sway bar retaining

1шт.

19

141260C2

STAND

- support

1шт.

20

473865R91

LINCH PIN

PIN - cotter, hair type

1шт.

21

493990R2

PIN

- headed, stand retaining

1шт.
