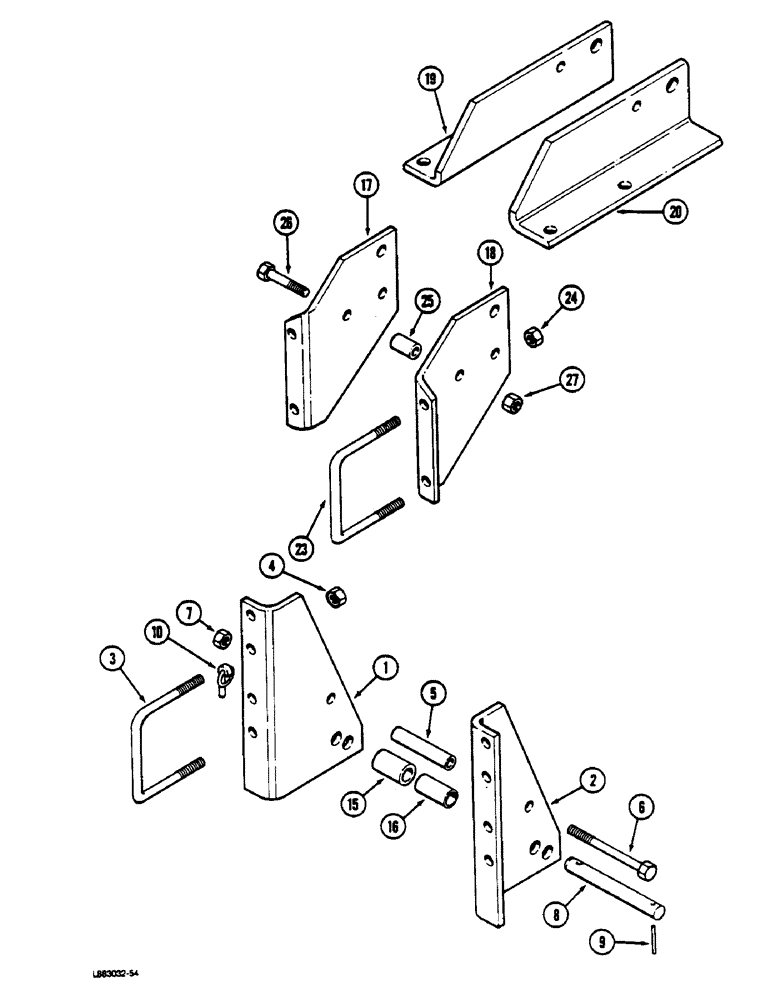

Запчасти Case IH 181 (9-20) - HITCH PARTS, FOLDING FRAME, 20-1/2, 27-1/2, 30-1/2 AND 41 FOOT HOE, PRIOR TO P.I.N. JAG 0211512 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
149488C1
SUPPORT
BRACKET - lower hitch, left
2шт.
2
149487C1
SUPPORT
BRACKET - lower hitch, right
2шт.
3
493975R3
U-BOLT,3/4" - 10 x 6 1/2", Steel
- 3/4 inch NC (20-1/2 foot hoe)
4шт.
3
147451C2
U-BOLT,3/4" - 10 x 217.45mm
- 3/4 inch NC (27-1/2, 30-1/2 and 41 foot hoe)
4шт.
4
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC
8шт.
5
147350C1
SPACER
- lower bracket
2шт.
6
413-12120
BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5
- hex, 3/4 NC x 7-1/2 inch
2шт.
7
231-42112
NUT,3/4"-10, GB
NUT - hex locking, 3/4 inch NC
2шт.
8
1279504C1
PIN,28.57mm OD x 226mm L
- hitch
2шт.
9
38-32440
PIN,3/8" x 2 1/2", Coiled
1шт.
10
372907R91
LINCH PIN
PIN - hitch
2шт.
15
147341C1
SPACER
- hitch
2шт.
16
147340C1
SPACER
- hitch, Category III
2шт.
17
1254563C91
PLATE
- mast, left (20-1/2, 27-1/2 and 30-1/2 foot hoe)
1шт.
REF
INSTRUCTION
DECAL - caution, folding position (See Figures 9-36 and 9-38)
1шт.
18
1254564C91
PLATE
- mast, right (20-1/2, 27-1/2 and 30-1/2 foot hoe)
1шт.
19
1264104C91
ANGLE
PLATE - mast, left (41 foot)
1шт.
REF
INSTRUCTION
DECAL - caution, folding position (See Figures 9-36 and 9-38)
1шт.
20
1264105C91
ANGLE
PLATE - mast, right (41 foot hoe)
1шт.
REF
INSTRUCTION
DECAL - caution, folding position (See Figures 9-36 and 9-38)
1шт.
REF
INSTRUCTION
DECAL - warning, keep clear (See Figures 9-36 and 9-38)
1шт.
23
493975R3
U-BOLT,3/4" - 10 x 6 1/2", Steel
- 3/4 inch NC (20-1/2 foot hoe)
2шт.
23
147451C2
U-BOLT,3/4" - 10 x 217.45mm
- 3/4 inch NC (27-1/2 and 30-1/2 foot hoe)
2шт.
23
493841R1
U-BOLT
- 7/8 inch NC (41 foot hoe)
2шт.
24
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC
1шт.
24
425-1014
NUT,7/8"-9, G5
NUT, 7/8"-9, G5
1шт.
25
462425R2
SPACER
- upper link
1шт.
26
413-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
- hex, 3/4 NC x 4 inch
1шт.
27
231-42112
NUT,3/4"-10, GB
NUT - hex locking, 3/4 inch NC
1шт.
Выбрано товаров: 29
