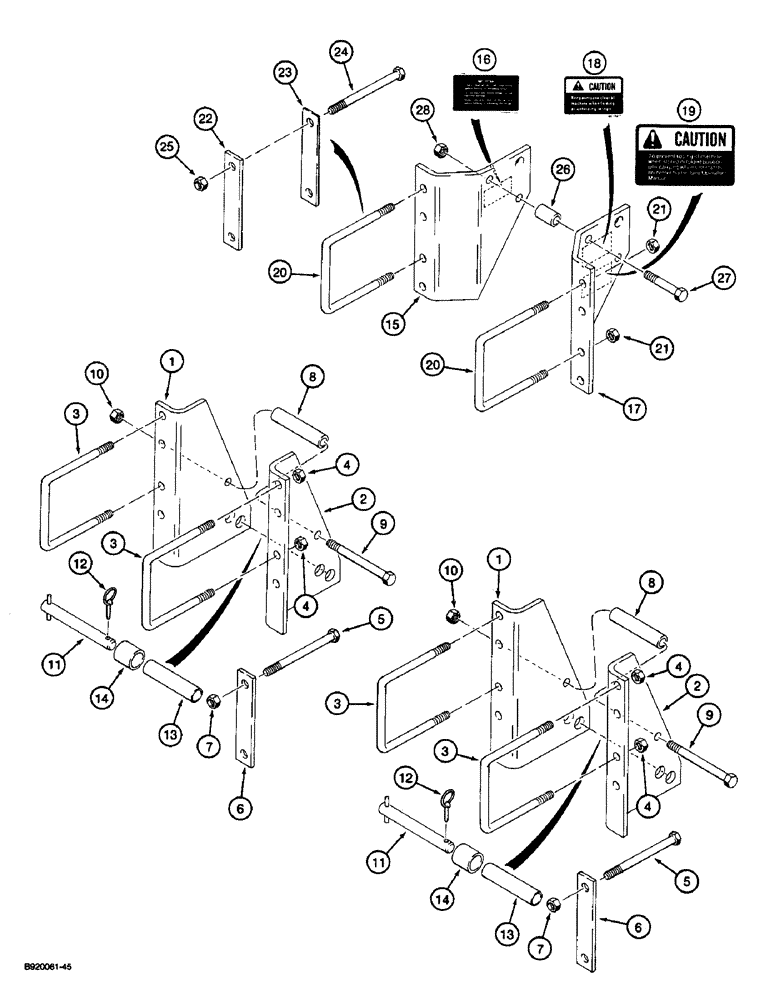

Запчасти Case IH 181 (9-18) - HITCH PARTS, RIGID FRAME, 20-1/2, 27-1/2 AND 30-1/2 FOOT HOE, P.I.N. JAG 0211512 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

149488C1

SUPPORT

BRACKET - lower hitch, left-hand

2шт.

2

149487C1

SUPPORT

BRACKET - lower hitch, right-hand

2шт.

3

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 20-1/2 and 27-1/2 foot hoe with 5 x 7 inch frame

4шт.

4

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

5

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, grade 8, for 30-1/2 foot hoe with 7 x 7 inch frame:

8шт.

6

147448C1

STRAP

- hitch, for 30-1/2 foot hoe with 7 x 7 inch frame

4шт.

7

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC, for 30-1/2 foot hoe with 7 x 7 inch frame:

8шт.

8

147350C1

SPACER

- lower bracket

2шт.

9

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

10

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

2шт.

11

1279504C1

PIN,28.57mm OD x 226mm L

- hitch

2шт.

12

372907R91

LINCH PIN

RETAINER - hitch pin

2шт.

13

147340C1

SPACER

- hitch adapter, Category III

2шт.

14

147341C1

SPACER

- hitch

2шт.

15

1547049C1

MAST ASSEMBLY

PLATE - hitch, upper, left-hand

1шт.

16

1250723C1

DECAL

- important, check manual for cab clearances

1шт.

17

1547074C1

PLATE

- hitch, upper, right-hand

1шт.

18

59051C2

PRODUCT GRAPHIC

DECAL - caution, keep everyone clear

1шт.

19

1250839C1

DECAL

- caution, prevent tipping

1шт.

20

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- for 20-1/2 and 27-1/2 foot hoe with 5 x 7 inch frame

2шт.

21

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

22

1254173C1

STRAP

- reinforcing, for 30-1/2 foot hoe with 7 x 7 inch frame

2шт.

23

147448C1

STRAP

- hitch, for 30-1/2 foot hoe with 7 x 7 inch frame

2шт.

24

426-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

- hex, 3/4 NC x 10 inch, grade 8

4шт.

25

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

4шт.

26

462425R2

SPACER

- upper link

1шт.

27

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

28

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.
