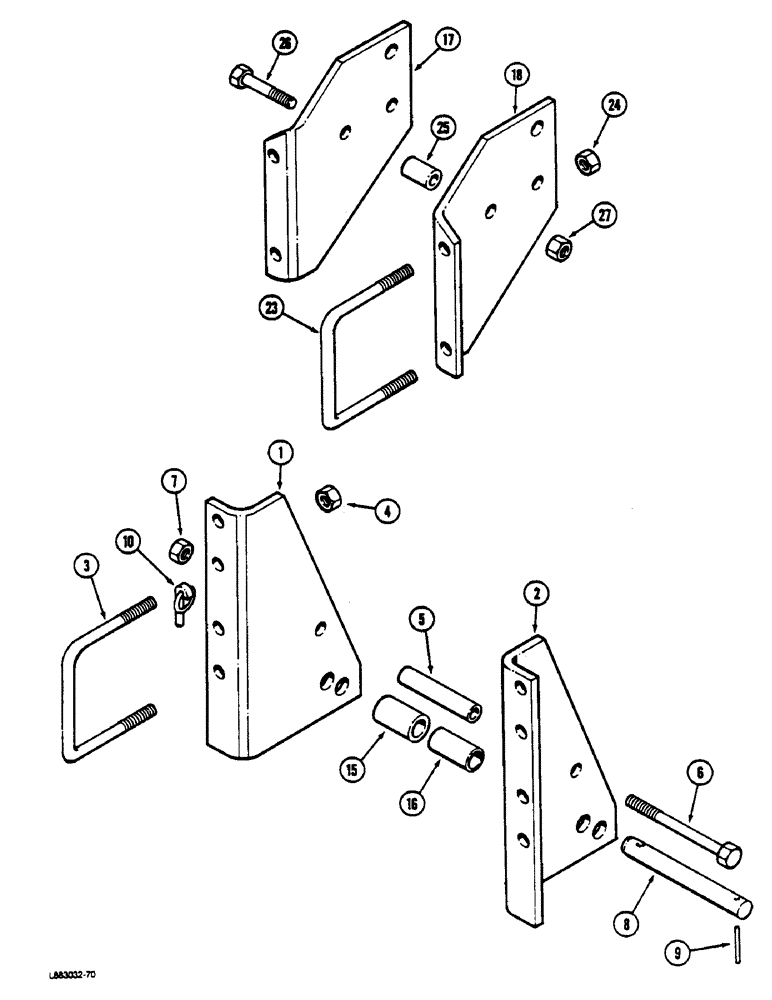

Запчасти Case IH 181 (9-16) - HITCH PARTS, RIGID FRAME, 20-1/2, 27-1/2 AND 30-1/2 FOOT HOE, PRIOR TO P.I.N. JAG 0211512 (09) - CHASSIS/ATTACHMENTS

1

149488C1

SUPPORT

BRACKET - lower hitch, left

2шт.

2

149487C1

SUPPORT

BRACKET - lower hitch, right

2шт.

3

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 3/4 inch NC (20-1/2 and 27-1/2 foot hoe)

4шт.

3

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC (30-1/2 foot hoe)

4шт.

4

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

5

147350C1

SPACER

- lower bracket

2шт.

6

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

7

231-42112

NUT,3/4"-10, GB

NUT - hex locking, 3/4 inch NC

2шт.

8

1279504C1

PIN,28.57mm OD x 226mm L

- hitch

2шт.

9

38-32440

PIN,3/8" x 2 1/2", Coiled

1шт.

10

372907R91

LINCH PIN

PIN - hitch

2шт.

15

147341C1

SPACER

- hitch

2шт.

16

147340C1

SPACER

- hitch, Category III

2шт.

17

149519C1

SUPPORT

PLATE - mast, left-hand

1шт.

18

149520C1

SUPPORT

PLATE - mast, right-hand

1шт.

23

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 3/4 inch NC (20-1/2 and 27-1/2 foot hoe)

2шт.

23

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC (30-1/2 foot hoe)

2шт.

24

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

25

462425R2

SPACER

- upper link

1шт.

26

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

27

231-42112

NUT,3/4"-10, GB

NUT - hex locking, 3/4 inch NC

1шт.
