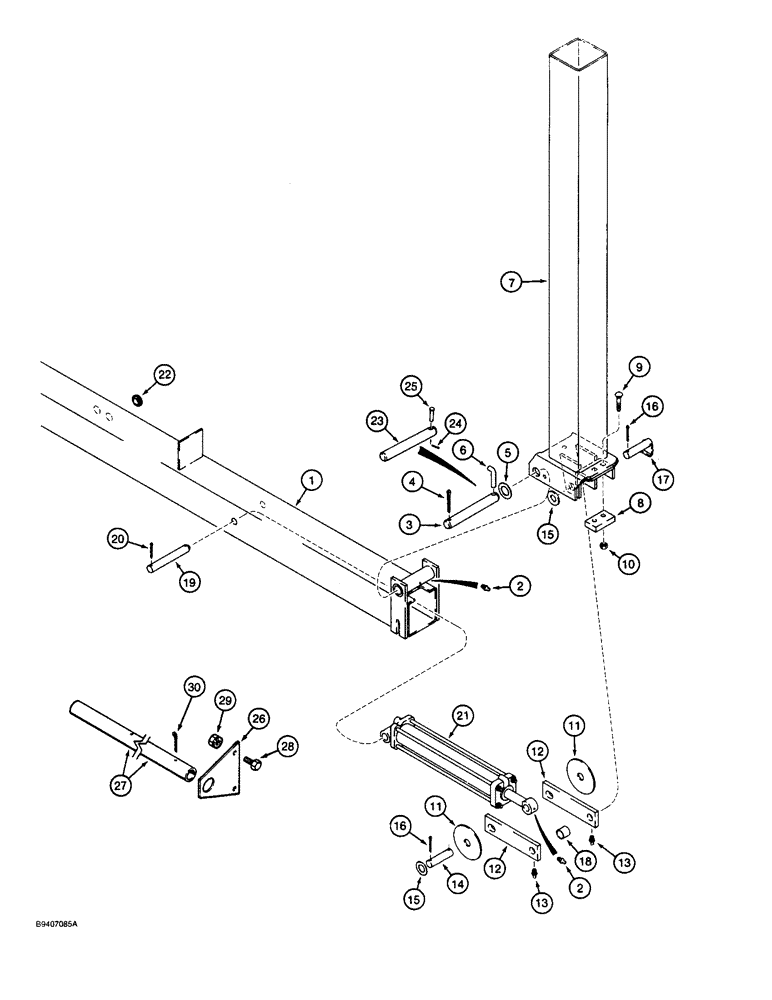

Запчасти Case IH 181 (9-12) - FRAME, FOLDING, WITH WELDED ON HITCHES, 27-1/2, 30-1/2 AND 41 FOOT HOE, P.I.N. JAG 0211512 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

104199A1

FRAME ASSY

FRAME - center, 27-1/2 foot hoe

1шт.

1

104201A1

FRAME ASSY

FRAME - center, 30-1/2 foot hoe

1шт.

1

104203A1

FRAME ASSY

FRAME - center, 41 foot hoe

1шт.

2

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4 inch, straight

4шт.

3

144892C1

PIN,38.1mm OD x 290.5mm L

- hinge, 27-1/2 and 30-1/2 foot hoe

2шт.

4

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), 1/2" x 2"

2шт.

5

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

1шт.

6

149507C1

BAR

PIN - pivot lock, 27-1/2 and 30-1/2 foot hoe

2шт.

7

111417A1

ARM

FRAME - wing, 27-1/2 foot hoe

2шт.

7

111418A1

ARM

FRAME - wing, 30-1/2 foot hoe

2шт.

7

111419A1

ARM

FRAME - wing, 41 foot hoe

2шт.

8

1344857C1

BLOCK

PLATE - stop

2шт.

9

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - carriage, 5/8 NC x 3 inch

4шт.

10

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

4шт.

11

1334194C1

ROLLER

- cylinder support

4шт.

12

1980724C1

BAR

LINK - wing bar

4шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

14

1985949C1

PIN,31.7mm OD x 124mm L

- cylinder rod end to wing link

2шт.

15

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

8шт.

16

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

6шт.

17

1969120C1

PIN

- wing link to wing frame

2шт.

18

1985951C1

SPACER

- wing bar link

2шт.

19

145174C1

PIN,31.75mm OD x 228mm L

- cylinder, base end

2шт.

20

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

21

1286369C91

HYDRAULIC CYLINDER,38.02mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - wing fold, 3-1/2 ID x 16 inch stroke, used with 27-1/2 and 30-1/2 foot hoe, See Figure 8-14

2шт.

21

1986595C1

CYLINDER,Double Acting, 38.1mm Rod, 381mm Stroke

ASSEMBLY - wing fold, 4 ID x 16 inch stroke, used with 41 foot hoe, See Figure 8-16

2шт.

22

100247C1

GROMMET

- hose, center frame

4шт.

23

1264497C1

PIN,38.1mm OD x 312mm L

- hinge, 41 foot hoe

2шт.

24

432-1216

COTTER PIN,3/16" x 1"

41 foot hoe 3/16" x 1"

2шт.

25

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - headed, 1/2 x 2-3/4 inch, 41 foot hoe

2шт.

26

1978632C1

PLATE

- support, limit pipe

4шт.

27

108043A1

PIPE

- limit, 27-5/8 inch long

2шт.

28

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

30

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.
