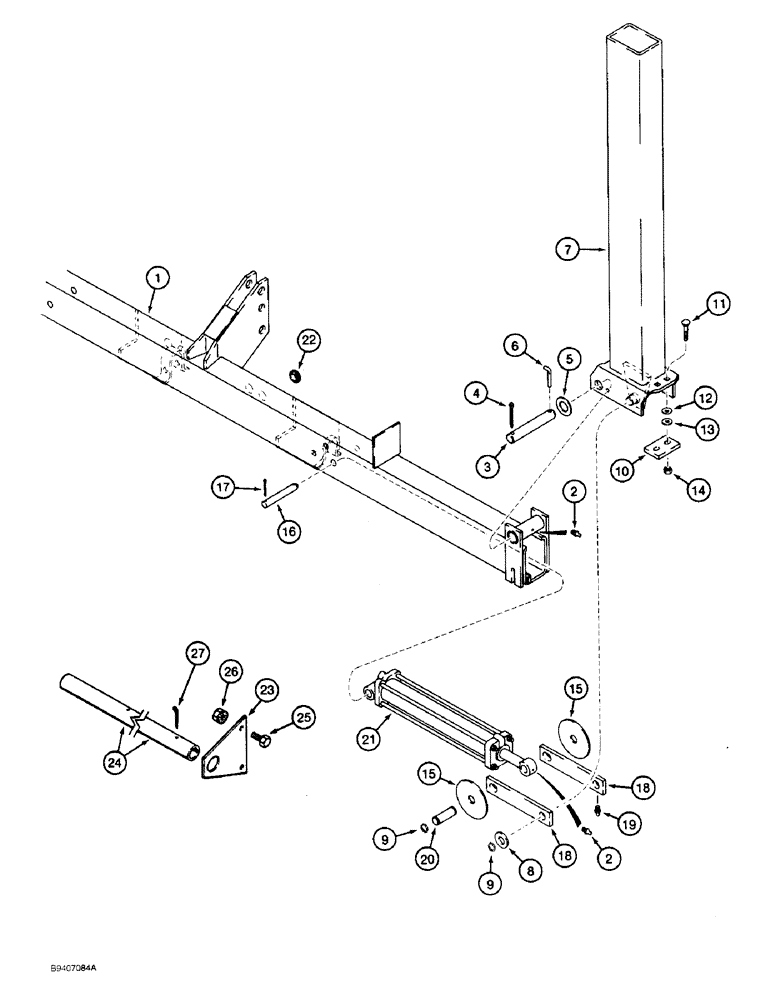

Запчасти Case IH 181 (9-10) - FRAME, FOLDING, WITH WELDED ON HITCHES, 20-1/2 FOOT HOE, P.I.N. JAG 0211512 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

104313A1

FRAME ASSY

FRAME - center

1шт.

2

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4 inch, straight

4шт.

3

147392C1

PIN,38.1mm OD x 228mm L

- hinge

2шт.

4

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), 1/2" x 2"

2шт.

5

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

1шт.

6

491601R3

PIN

- pivot lock

2шт.

7

1547704C1

FRAME ASSY

FRAME - wing

2шт.

8

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

4шт.

9

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

10

149426C2

PLATE

- stop

2шт.

11

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - carriage, 5/8 NC x 3 inch

4шт.

12

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

28шт.

13

495-81007

WASHER,21/32" x 1 3/4" x .060"

- flat, 21/32 x 1-3/4 x 3/64 inch

4шт.

14

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

4шт.

15

145035C1

WASHER

ROLLER - cylinder support

4шт.

16

147393C1

PIN

- cylinder, base end

2шт.

17

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

18

149559C1

BAR

LINK - wing bar

4шт.

19

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

20

149560C1

PIN,29.3mm OD x 99.5mm L

- cylinder and wing link

2шт.

21

1286442C91

HYDRAULIC CYLINDER,31.67mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - hydraulic fold, See Figure 8-10

2шт.

22

100247C1

GROMMET

- hose, center frame

4шт.

23

1978632C1

PLATE

- support, limit rod

4шт.

24

108043A1

PIPE

- limit, 27-5/8 inch long

2шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

26

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

27

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.
