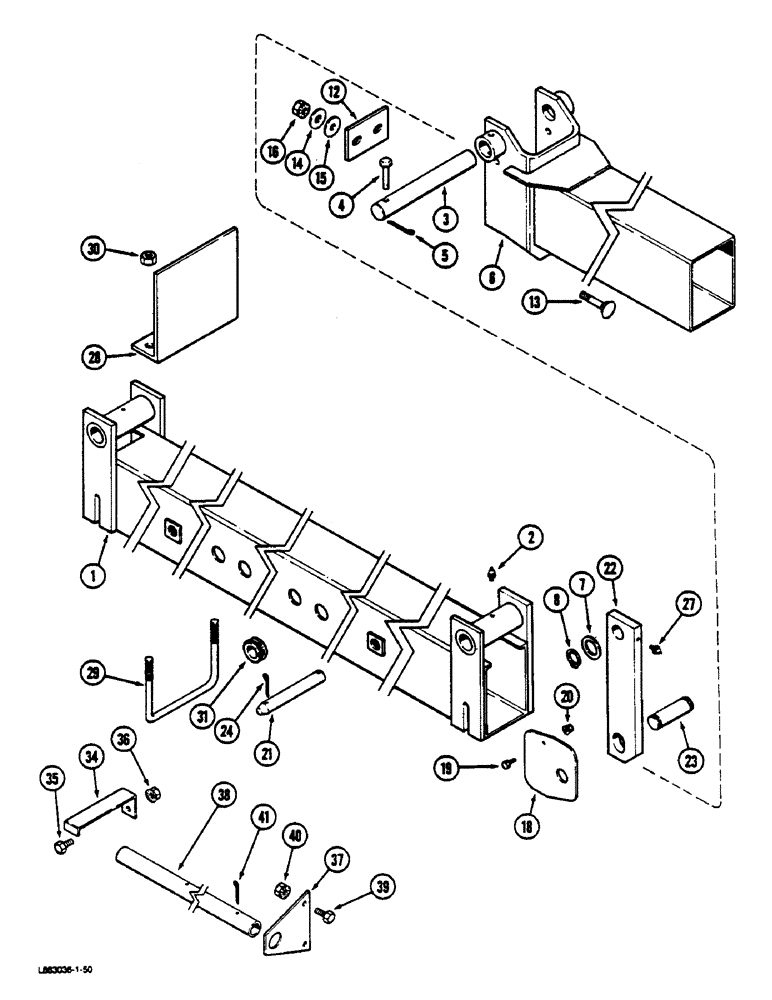

Запчасти Case IH 181 (9-08) - FRAME, FOLDING, 41 FOOT HOE, PRIOR TO P.I.N. JAG 0211512 (09) - CHASSIS/ATTACHMENTS

1

1264060C1

VALVE BLOCK

FRAME - main

1шт.

See Figure 9-20 for bolted on hitches used with this folding frame.

1шт.

2

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4 inch straight

2шт.

3

1264497C1

PIN,38.1mm OD x 312mm L

- frame hinge

2шт.

4

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - clevis, 1/2 x 2-3/4 inch

2шт.

5

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

6

147431C1

ASSEMBLY

FRAME - wing

2шт.

7

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/32 inch

4шт.

8

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

12

149426C2

PLATE

- stop

2шт.

13

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - carriage, 5/8 NC x 3 inch

4шт.

14

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 7/64 inch

28шт.

15

23045R1

WASHER

- flat, 21/32 x 1-3/4 x 3/64 inch

4шт.

16

231-41110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

18

1254398C1

SUPPORT

- cylinder slider

4шт.

19

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 x 1/2 inch

4шт.

20

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

21

145174C1

PIN,31.75mm OD x 228mm L

- cylinder anchor

2шт.

22

1254397C1

BAR

LINK - wing bar

1шт.

23

147227C1

PIN

- cylinder rod

1шт.

24

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

27

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" drive type

4шт.

28

149452C1

ANGLE

BRACKET - wing stop

1шт.

29

1250813C1

U-BOLT

- frame retaining

36шт.

30

425-1010

NUT,5/8"-11, G5

72шт.

31

100247C1

GROMMET

- frame

4шт.

34

1254519C1

SUPPORT

RETAINER - frame, long

1шт.

35

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

37

1978632C1

PLATE

- support

6шт.

38

1978636C1

PIPE

- limit, 113-1/2 inch long

2шт.

39

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

12шт.

40

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

41

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.
