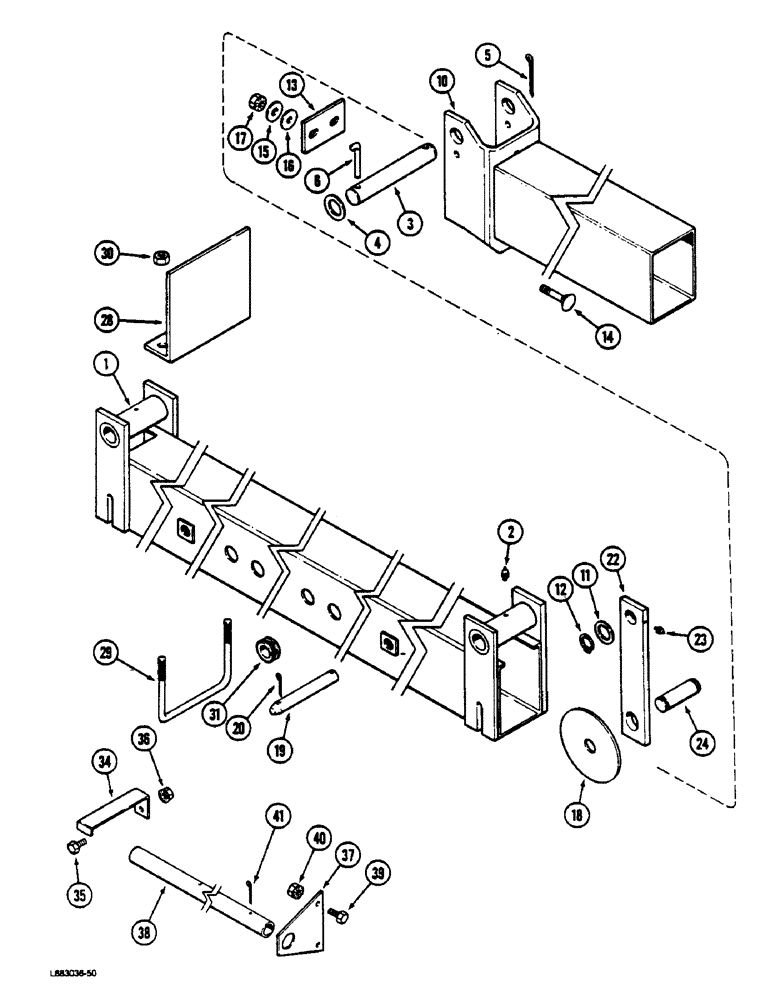

Запчасти Case IH 181 (9-06) - FRAME, FOLDING, 20-1/2, 27-1/2 AND 30-1/2 FOOT HOE, PRIOR TO P.I.N. JAG0211512 (09) - CHASSIS/ATTACHMENTS

1

147394C3

ASSEMBLY

FRAME - main, 20-1/2 foot hoe

1шт.

See Figure 9-20 for bolted on hitches used with these folding frames.

1шт.

1

147387C3

ASSEMBLY

FRAME - main, 27-1/2 foot hoe

1шт.

See Figure 9-20 for bolted on hitches used with these folding frames.

1шт.

1

144887C3

ASSEMBLY

FRAME - main, 30-1/2 foot hoe

1шт.

See Figure 9-20 for bolted on hitches used with these folding frames.

1шт.

2

25391R1

FITTING

- grease, 1/4 inch straight

2шт.

3

147392C1

PIN,38.1mm OD x 228mm L

- frame hinge, 20-1/2 foot hoe

2шт.

3

144892C1

PIN,38.1mm OD x 290.5mm L

- frame hinge, 27-1/2 and 30-1/2 foot hoe

2шт.

4

22051R1

WASHER

- flat, 1-17/32 x 2-1/4 x 3/64 inch

4шт.

5

32-3232

COTTER PIN,1/2" x 2"

PIN - cotter, 1/2 x 2 inch

2шт.

6

491601R2

PIN

- pivot lock, 20-1/2 foot hoe

2шт.

6

149507C1

BAR

PIN - pivot lock, 27-1/2 and 30-1/2 foot hoe

2шт.

10

147396C3

FRAME

- wing, 20-1/2 foot hoe

2шт.

10

147385C3

FRAME

- wing, 27-1/2 foot hoe

2шт.

10

149434C3

FRAME

- wing, 30-1/2 foot hoe

2шт.

11

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/32 inch

4шт.

12

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

13

149426C2

PLATE

- stop

2шт.

14

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - carriage, 5/8 NC x 3 inch

4шт.

15

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 7/64 inch

28шт.

16

495-81007

WASHER,21/32" x 1 3/4" x .060"

- flat, 21/32 x 1-3/4 x 3/64 inch

4шт.

17

231-41110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

18

145035C1

WASHER

SUPPORT - cylinder

4шт.

19

147393C1

PIN

- cylinder anchor, 20-1/2 foot hoe

2шт.

19

145174C1

PIN,31.75mm OD x 228mm L

- cylinder anchor, 27-1/2 and 30-1/2 foot hoe

2шт.

20

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

22

149559C1

BAR

LINK - wing bar

4шт.

23

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" drive type

4шт.

24

149560C1

PIN,29.3mm OD x 99.5mm L

- cylinder

2шт.

28

149452C1

ANGLE

BRACKET - wing stop

1шт.

29

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- frame retaining, 20-1/2 foot hoe

17шт.

29

1250813C1

U-BOLT

- frame retaining, 27-1/2 foot hoe

26шт.

29

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT - frame retaining, 30-1/2 foot hoe

30шт.

30

425-1010

NUT,5/8"-11, G5

1шт.

31

100247C1

GROMMET

- frame

4шт.

34

1254519C1

SUPPORT

RETAINER - frame, long, 20-1/2 foot hoe

1шт.

34

1250808C1

ROD

RETAINER - frame, short, 27-1/2 and 30-1/2 foot hoe

1шт.

35

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

37

1978632C1

PLATE

- support

6шт.

38

1978634C1

PIPE

- limit, 50-1/2 inch long, 20-1/2 foot hoe

2шт.

38

1978635C1

PIPE

- limit, 78-1/2 inch long, 27-1/2 foot hoe

2шт.

38

1978633C1

PIPE

- limit, 85-7/16 inch long, 30-1/2 foot hoe

2шт.

39

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

12шт.

40

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

41

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.
