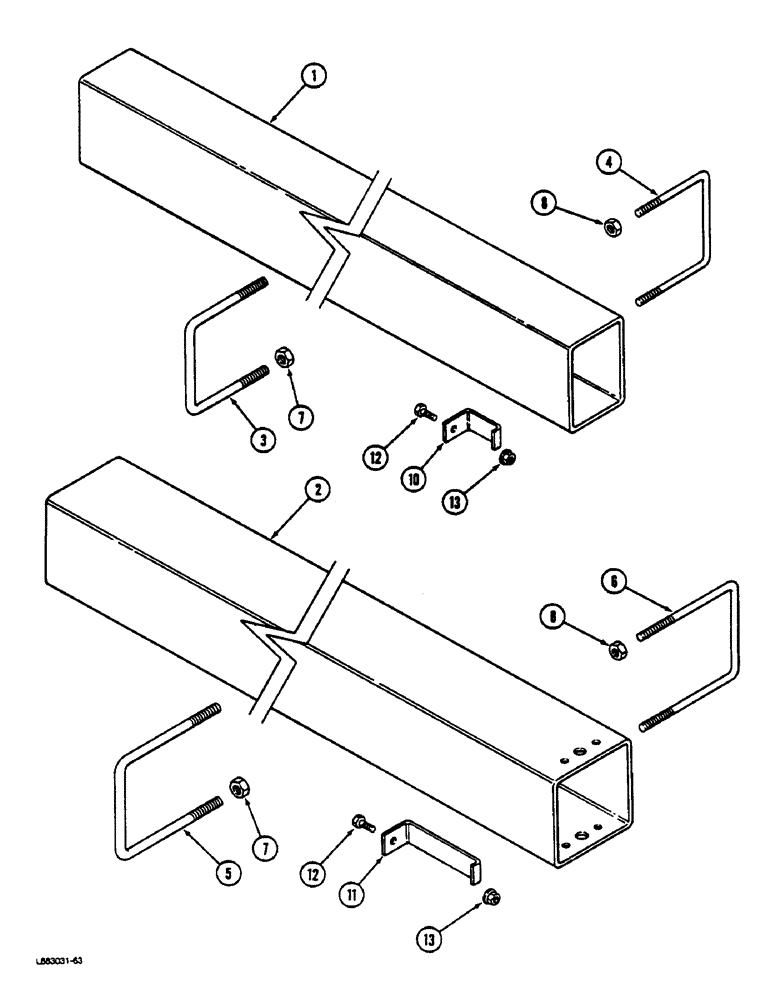

Запчасти Case IH 181 (9-02) - FRAME, RIGID, PRIOR TO P.I.N. JAG 0211512 (09) - CHASSIS/ATTACHMENTS

1

145075C1

TUBE

FRAME - main, 190 inch long (15 foot hoe)

1шт.

See Figures 9-14 and 9-16 for bolted on hitches used with these rigid frames.

1шт.

1

1547713C1

TUBE,6450 mm Length

FRAME - main, 254 inch long (20-1/2 foot hoe)

1шт.

See Figures 9-14 and 9-16 for bolted on hitches used with these rigid frames.

1шт.

1

107806A1

TUBE

FRAME - main, 338 inch long (27-1/2 foot hoe)

1шт.

See Figures 9-14 and 9-16 for bolted on hitches used with these rigid frames.

1шт.

2

107805A1

TUBE

FRAME - main, 370 inch long (30-1/2 foot hoe)

1шт.

See Figures 9-14 and 9-16 for bolted on hitches used with these rigid frames.

1шт.

3

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 3/4 inch NC (15 foot standard hoe)

2шт.

3

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

- 3/4 inch NC (20-1/2 and 27-1/2 foot standard hoe)

4шт.

4

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- 5/8 inch NC (15 foot minimum tillage hoe)

12шт.

4

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- 5/8 inch NC (20-1/2 foot minimum tillage hoe)

17шт.

4

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- 5/8 inch NC (27-1/2 foot minimum tillage hoe)

24шт.

5

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC (30-1/2 foot standard hoe)

4шт.

6

1250813C1

U-BOLT

- 5/8 inch NC (30-1/2 foot minimum tillage hoe)

4шт.

7

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

8

425-1010

NUT,5/8"-11, G5

1шт.

10

1250808C1

ROD

RETAINER - frame, short (27-1/2 and 30-1/2 foot hoe)

1шт.

11

1254519C1

SUPPORT

RETAINER - frame, long (15 and 20-1/2 foot hoe)

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.
