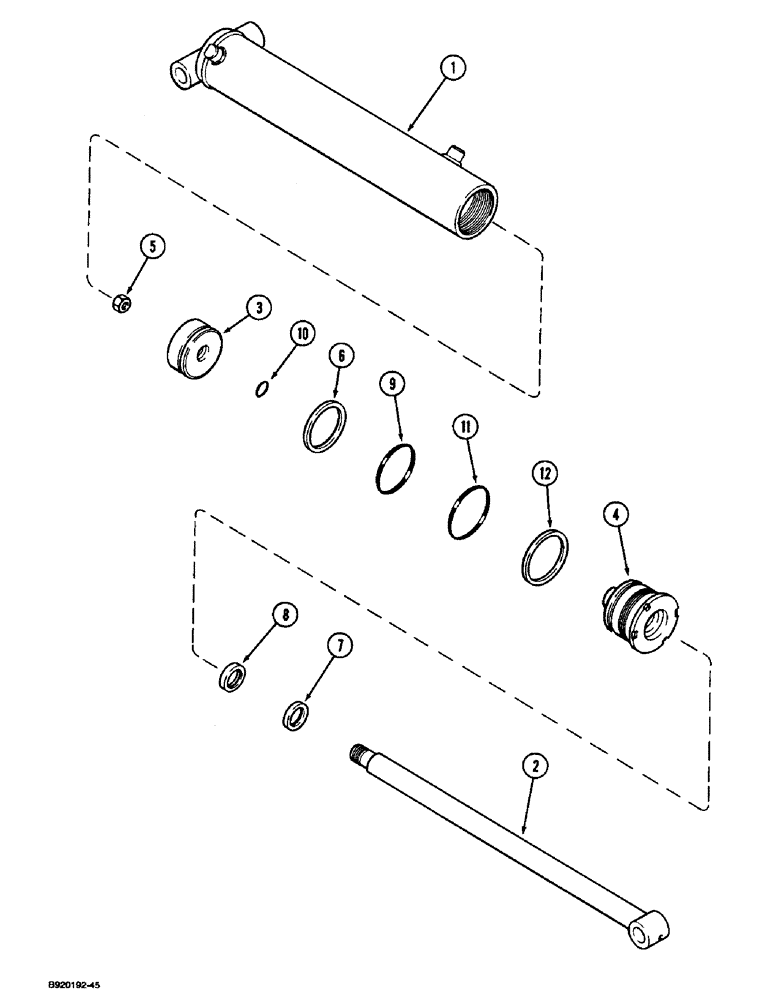

Запчасти Case IH 181 (8-16) - HYDRAULIC CYLINDER, 1986595C1, 4 ID X 16 INCH STROKE (08) - HYDRAULICS

1986595C1

CYLINDER,Double Acting, 38.1mm Rod, 381mm Stroke

ASSEMBLY - hydraulic, 4 ID x 16 stroke

2шт.

1

1986657C1

TUBE ASSY.

TUBE - cylinder

1шт.

2

1986658C1

ROD ASSY.

ROD - piston

1шт.

3

1986659C1

PISTON

- cylinder

1шт.

4

1986660C1

HEAD

- cylinder, front

1шт.

5

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex, 1-1/8 inch NF

1шт.

1986665C1

SEAL KIT

- seal

1шт.

6

381110R1

RING

- piston seal

1шт.

7

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER - piston rod

1шт.

8

119203C1

SEAL

SEAL - piston rod

1шт.

9

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

10

238-6216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 6, 90 Duro

1шт.

11

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup

1шт.
