(8-12) - HYDRAULIC CYLINDER, 149864C93, STANDARD ROTARY HOE, 3-1/2 X 16 INCH

Запчасти Case IH 181 (8-12) - HYDRAULIC CYLINDER, 149864C93, STANDARD ROTARY HOE, 3-1/2 X 16 INCH (08) - HYDRAULICS

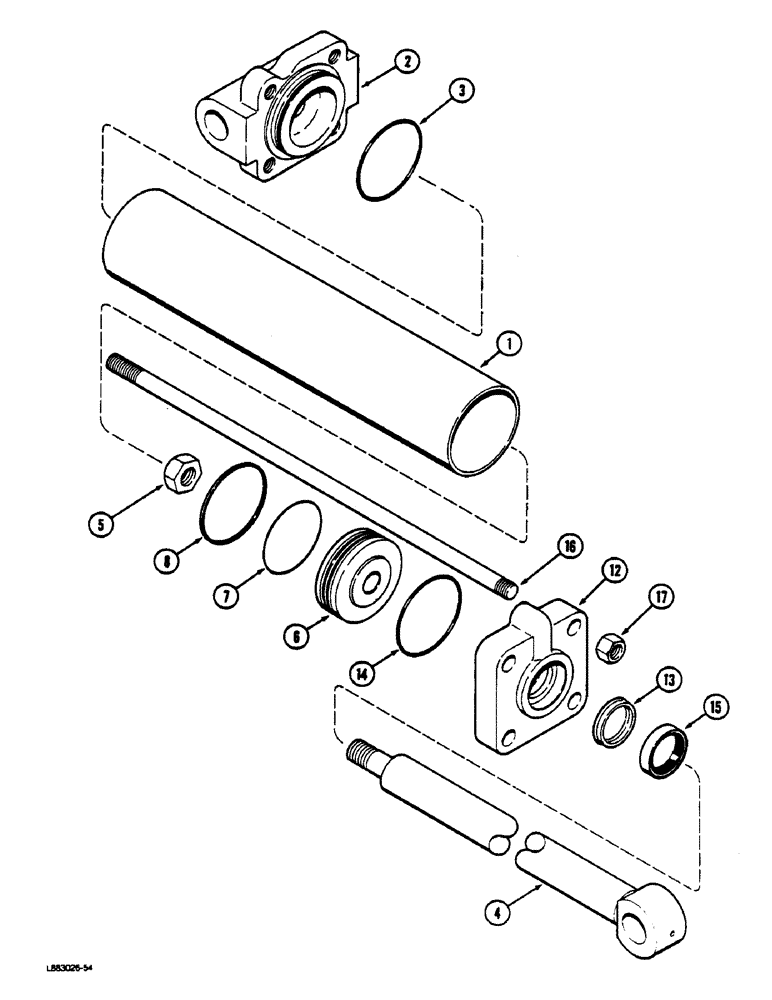

Схема запчастей Case IH 181 - (8-12) - HYDRAULIC CYLINDER, 149864C93, STANDARD ROTARY HOE, 3-1/2 X 16 INCH (08) - HYDRAULICS
13
12
16
15
5
4
1
8
7
3
6
2
14
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

149864C93

CYLINDER

ASSEMBLY - hydraulic, no longer available, order 1286369C91 when replacing complete cylinder, see page 8-15

1шт.

1

145235C1

CYLINDER

BODY - cylinder sleeve

1шт.

2

1286370C1

HEAD

- cylinder, rear

1шт.

3

238-6236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 6, 90 Duro

- 3-1/4 x 3-1/2 inch

1шт.

Part of seal kit P/N 79978C2.

1шт.

4

1260810C1

ROD

- piston

1шт.

5

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

6

145422C2

PISTON

- cylinder

1шт.

7

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

- piston sealing, 3 x 3-3/16 inch

1шт.

Part of seal kit P/N 79978C2.

1шт.

8

381086R1

RING

- piston seal

1шт.

Part of seal kit P/N 79978C2.

1шт.

12

1286371C1

HEAD

- cylinder, front

1шт.

13

119203C1

SEAL

SEAL - piston rod

1шт.

Part of seal kit P/N 79978C2.

1шт.

14

238-6236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 6, 90 Duro

- 3-1/4 x 3-1/2 inch

1шт.

Part of seal kit P/N 79978C2.

1шт.

15

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEAL - piston rod wiper

1шт.

Part of seal kit P/N 79978C2.

1шт.

16

149879C2

BOLT,5/8" - 11 x 545mm

- cylinder retaining

4шт.

17

425-1010

NUT,5/8"-11, G5

4шт.

79978C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 7, 8 and 13 - 15

1шт.
