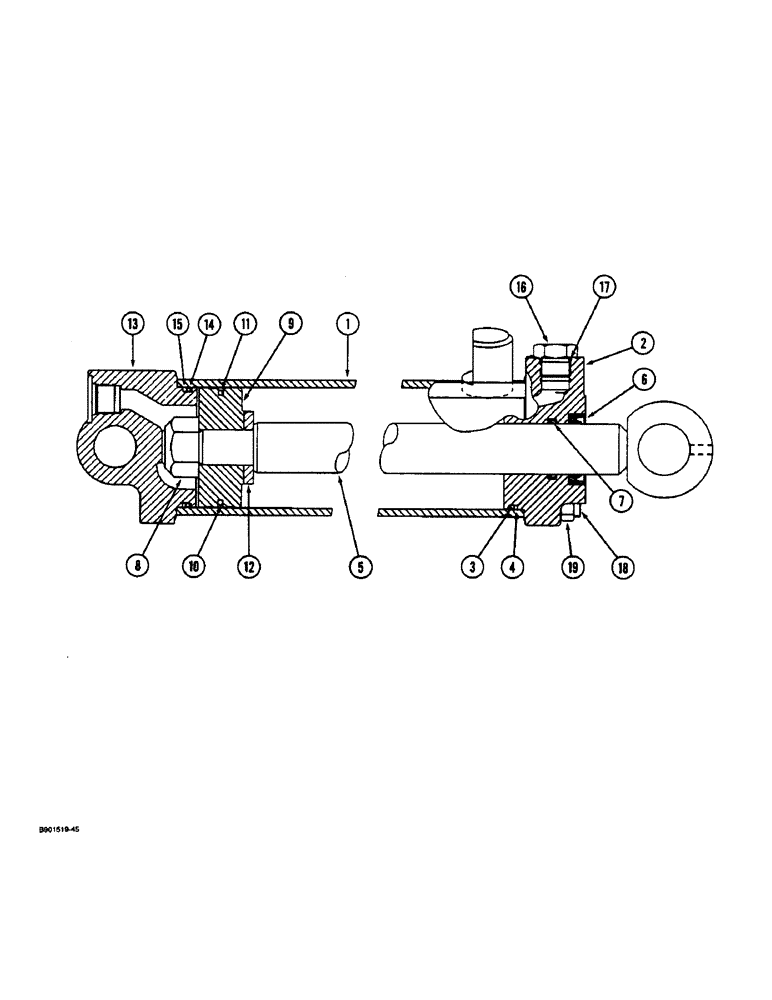

Запчасти Case IH 181 (8-10) - HYDRAULIC CYLINDER, 1286442C91, 3 ID X 16 INCH STROKE (08) - HYDRAULICS

1286442C91

HYDRAULIC CYLINDER,31.67mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - 3 ID x 16 stroke, 3/4-16 inch ports

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272762C1

HEAD

GLAND - cylinder

1шт.

3

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

Gland -232, 90 Duro, 2.734" ID x .139" Thk

1шт.

Part of seal kit P/N 79976C2.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 79976C2.

1шт.

5

149874C1

ROD

- piston

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N 79976C2.

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 79976C2.

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

9

145225C2

PISTON

- cylinder

1шт.

10

387373R1

RING

SEAL - piston

1шт.

Part of seal kit P/N 79976C2.

1шт.

11

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

Backup, piston seal -145, 90 Duro, 2.55" ID x .103" Thk

1шт.

Part of seal kit P/N 79976C2.

1шт.

12

1252171C1

SPACER

- piston

1шт.

13

1286443C1

HEAD

- cylinder, closed end

1шт.

14

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

Cylinder head -232, 90 Duro, 2.734" ID x .139" Thk

1шт.

Part of seal kit P/N 79976C2.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 79976C2.

1шт.

16

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

Part of seal kit P/N 79976C2.

1шт.

18

149876C1

BOLT,7/16" - 14 x 533mm

- tie, cylinder

4шт.

19

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

79976C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 14, 15 and 17

1шт.
