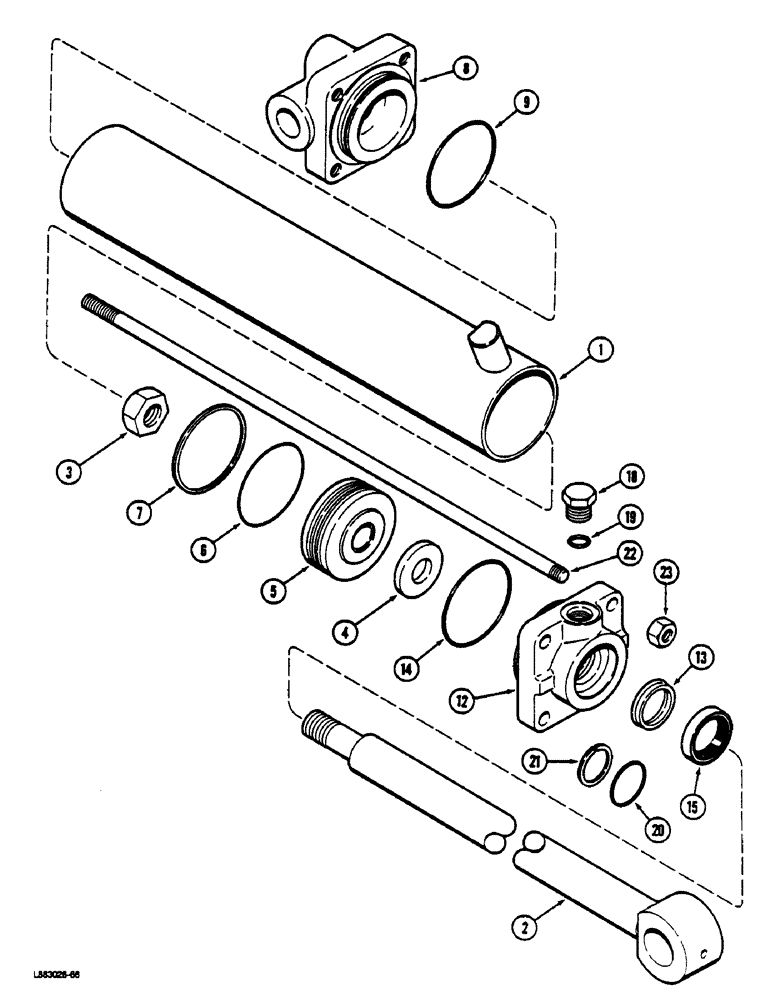

Запчасти Case IH 181 (8-08) - HYDRAULIC CYLINDER, 149863C92, STANDARD ROTARY HOE, 3 ID X 16 INCH STROKE (08) - HYDRAULICS

149863C92

CYLINDER

ASSEMBLY - hydraulic, no longer available, order 1286442C91 for complete replacement, see page 8-11

1шт.

1

149870C1

BODY

- cylinder

1шт.

2

149874C1

ROD

- cylinder piston

1шт.

3

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, grade 8

1шт.

4

1252171C1

SPACER

- piston

1шт.

5

145225C2

PISTON

- cylinder

1шт.

6

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

7

387373R1

RING

- piston seal

1шт.

Part of seal kit P/N 79976C2.

1шт.

8

1286443C1

HEAD

- rear

1шт.

9

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

12

1272762C1

HEAD

- cylinder, front

1шт.

13

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- rod

1шт.

Part of seal kit P/N 79976C2.

1шт.

14

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

15

546283R1

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit P/N 79976C2.

1шт.

18

9410359

PLUG

- front head, O-ring boss

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 79976C2.

1шт.

20

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 79976C2.

1шт.

21

546279R1

WASHER

- ring backup

1шт.

Part of seal kit P/N 79976C2.

1шт.

22

149876C1

BOLT,7/16" - 14 x 533mm

- cylinder retaining

4шт.

23

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

79976C2

SEAL KIT

KIT - seal, Includes: Ref. 6, 7, 9, 13 - 15 and 19 - 21

1шт.
