Запчасти Case IH 181 (8-06) - FRAME FOLD HYDRAULIC CIRCUIT, P.I.N. JAG 0211512 AND AFTER (08) - HYDRAULICS

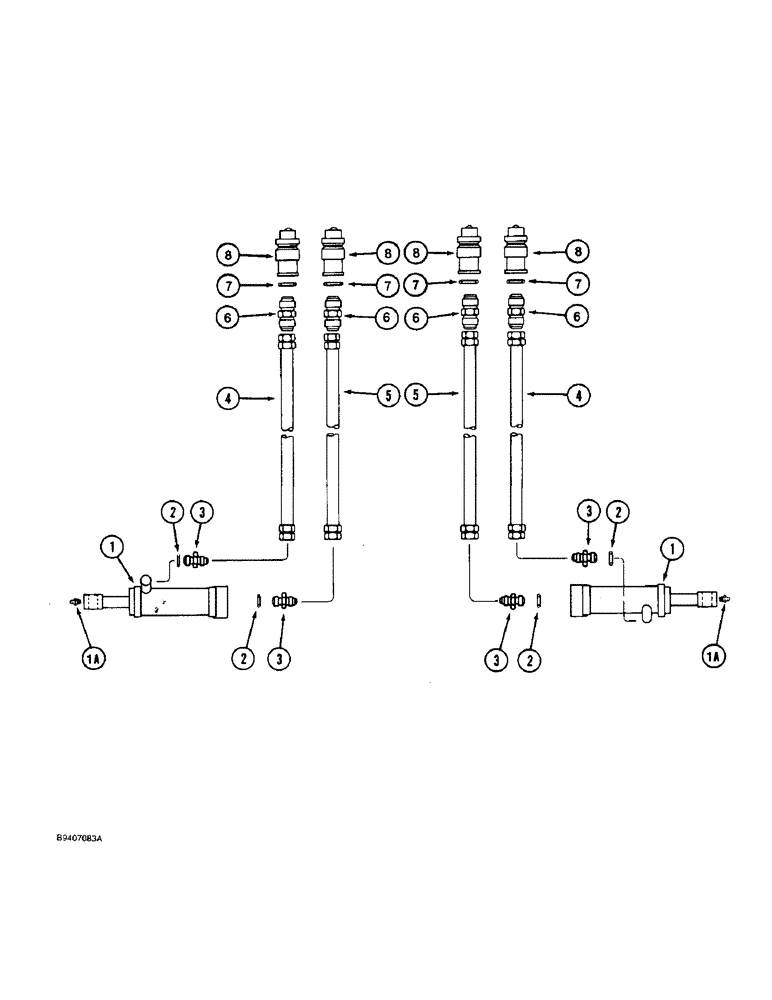

Схема запчастей Case IH 181 - (8-06) - FRAME FOLD HYDRAULIC CIRCUIT, P.I.N. JAG 0211512 AND AFTER (08) - HYDRAULICS
2
7
2
6
2
4
1a
3
1
7
3
7
6
7
5
8
1
8
3
2
1a
6
8
6
3
4
8
5

Артикул

Название

Примечание

Количество

1

1286442C91

HYDRAULIC CYLINDER,31.67mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - frame fold, 3 ID x 16 inch stroke, 20-1/2 foot hoe, See Figure 8-10

2шт.

1

1286369C91

HYDRAULIC CYLINDER,38.02mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - frame fold, 3-1/2 ID x 16 stroke, 27-1/2 and 30-1/2 foot hoe, See Figure 8-14

2шт.

1

1986595C1

CYLINDER,Double Acting, 38.1mm Rod, 381mm Stroke

ASSEMBLY - frame fold, 4 ID x 16 inch stroke, 41 foot hoe, See Figure 8-16

2шт.

1a

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 95750C1 adapter

4шт.

3

95750C1

HYD CONNECTOR

ADAPTER - restrictor, used with 3 x 16 inch cylinder

4шт.

3

95749C1

UNION

ADAPTER - restrictor, used with 3-1/2 x 16 and 4 x 16 inch cylinders

4шт.

4

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

- Rod end, 20-1/2 foot hoe 6.35 mm ID x 2285.00 mm

2шт.

4

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

- Rod end (27-1/2 foot hoe) 9.52 mm ID x 2795.00 mm

2шт.

4

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

- Rod end, 30-1/2 foot hoe 6.35 mm ID x 3050.00 mm

2шт.

4

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

- Rod end (41 foot hoe) 9.52 mm ID x 3810.00 mm

2шт.

5

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

HOSE - 70 inch long, base end, 20-1/2 foot hoe

2шт.

5

813006C2

HYDRAULIC HOSE

HOSE - 85 inch long, base end, 27-1/2 foot hoe

2шт.

5

1284291C1

HYDRAULIC HOSE

- 95 inch long, base end, 30-1/2 foot hoe

2шт.

5

1284369C1

HYDRAULIC HOSE

HOSE - 130 inch long, base end, 41 foot hoe

2шт.

6

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

4шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1341843C1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread poppet type, if used

4шт.

8

1272399C2

QUICK MALE COUPLING

COUPLER - male, quick attachable, ISO, if used

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Used with 95749C1 adapter

4шт.

Выбрано товаров: 20
