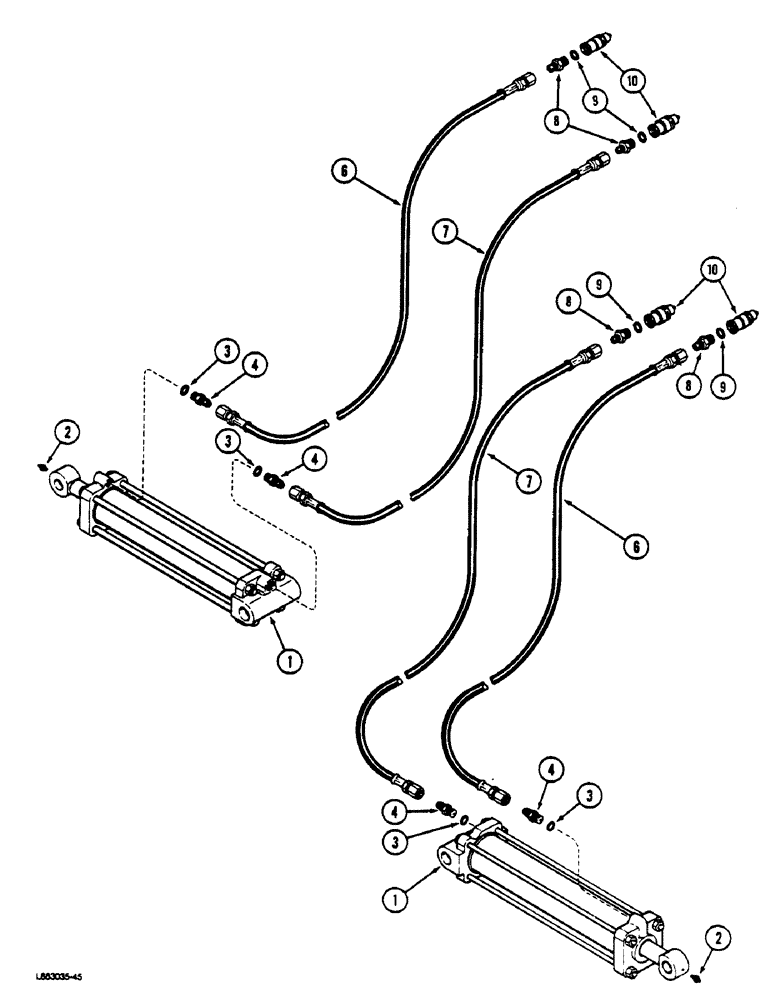

Запчасти Case IH 181 (8-04) - FRAME FOLD HYDRAULIC CIRCUIT, 27-1/2, 30-1/2 AND 41 FOOT HOE, PRIOR TO PIN JAG 0211512 (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - frame fold, 181 standard hoe (See Figure 8-12)

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - frame fold, 181 minimum tillage hoe (See Figure 8-14)

2шт.

2

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

2шт.

4

95749C1

UNION

CONNECTOR - restrictor (27-1/2 and 30-1/2 foot hoe)

4шт.

4

1264167C1

UNION

CONNECTOR - restrictor (41 foot hoe)

4шт.

6

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

- Rod end (27-1/2 foot hoe) 9.52 mm ID x 2795.00 mm

2шт.

6

1301350C2

HYDRAULIC HOSE

HOSE - 120 inch long, rod end (30-1/2 foot hoe)

2шт.

6

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

- Rod end (41 foot hoe) 9.52 mm ID x 3810.00 mm

2шт.

7

813006C2

HYDRAULIC HOSE

HOSE - 85 inch long, base end (27-1/2 foot hoe)

2шт.

7

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

HOSE - 95 inch long, base end (30-1/2 foot hoe)

2шт.

7

1284369C1

HYDRAULIC HOSE

HOSE - 130 inch long, base end (41 foot hoe)

2шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, If used

4шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, if used

4шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used with 218-5354 adapter

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 218-5058 adapter

1шт.

10

1341843C1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread poppet type

4шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
