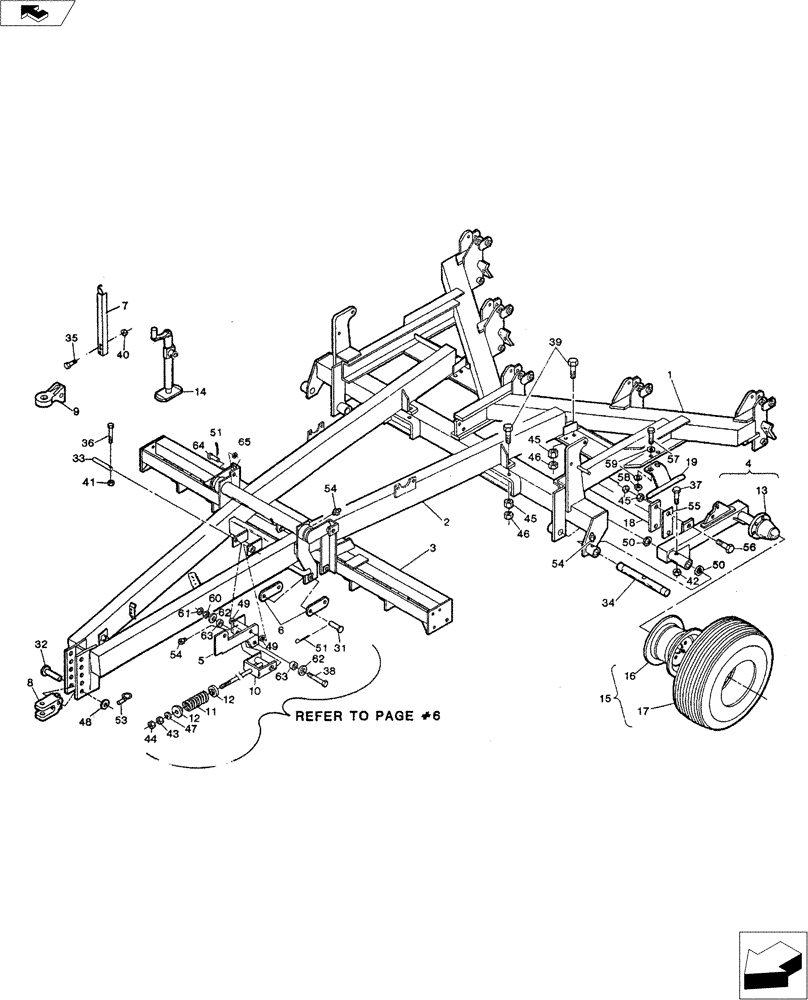

Запчасти Case IH TIGER-TWO (39.100.01) - FRAME ASSY AND COULTER ATTACHMENT (39) - FRAMES AND BALLASTING

1

09961600

FRAME

Main (5 Shank)

1шт.

1

09961700

FRAME

Main (7 Shank)

1шт.

2

09900520

FRAME

Pull Assembly (5 Shank)

1шт.

2

09900525

FRAME

Pull (7 Shank)

1шт.

3

09573100

FRAME ASSY

Coulter (5 Shank)

1шт.

3

09573100W

FRAME

Coulter (7 Shank) 09573300

1шт.

4

09961200

ARM

Spindle - RH (5 Shank)

1шт.

4

09961300

ARM

Spindle - LH (5 Shank)

1шт.

4

09962800

BRACKET

Spindle Arm - RH (7 Shank)

1шт.

4

09962900

BRACKET

Spindle Arm - LH (7 Shank)

1шт.

5

09971000

LINK

1шт.

6

09964000

LOWER LINK

4шт.

7

04615000

BRACKET

Hose Support

1шт.

8

20092051

CLEVIS

Double

1шт.

9

20092071

ADJUSTABLE CLEVIS

Single

1шт.

10

09963050

PIVOT

Weldment

1шт.

11

24156203

SPRING

Compression

1шт.

12

20090050

HOLDER

Spring Casting

2шт.

13

28177800

HUB ASSY.

778 (5 Shank), See Figure 21

2шт.

13

28681900

HUB ASSY.

819 (7 Shank), See Figure 21

2шт.

14

32220000

JACK

Swivel 2000

1шт.

15

10901605

WHEEL

16.5L x 16.1 8-Ply Tire 8 Assembly

2шт.

16

16111166

WHEEL

11 x 16 8-Hole

2шт.

17

NSS

NOT SOLD SEPARAT

16.5L x 16.1 8-Ply Tire

2шт.

18

09961310

TUBE

Torque

1шт.

19

09900805

SCRAPER

Tire (Optional)

2шт.

19

09900800

SCRAPER

Tire Kit (Optional)

1шт.

30

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8'' x 3-1/8'' EL Clevis

1шт.

31

14816180

HEADED PIN

1" Dia. x 3" EL Clevis

4шт.

32

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4" x 5-1/2" Lg.

1шт.

33

14892066

PIN

1-1/4" x 8-1/2" Lg.

1шт.

34

14826994

SPECIAL PIN

1-5/8" x 17-7/8" Lg.

2шт.

35

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Capscrew

2шт.

36

16007105

BOLT

7/16" x 2-1/2" NC Capscrew Gd. 5

1шт.

37

16007125

BOLT

1/2" x 3" NC Capscrew Gd. 5

2шт.

38

16900828

CAPSCREW

1/2" x 7" Lg. Hex. Bolt Gd. 5 ZP

1шт.

39

16014115

BOLT

7/8" x 2-3/4" NC Capscrew Gd. 5

8шт.

40

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

41

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Lock Nut

1шт.

42

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Lock Nut

2шт.

43

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

44

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Jam Nut

1шт.

45

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

16шт.

46

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Jam Nut

8шт.

47

NSS

NOT SOLD SEPARAT

3/4" Std. Washer

1шт.

48

17421021

WASHER

1-1/4" Heavy

1шт.

49

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" x 14 Ga. Machine

4шт.

50

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8" x 14 Ga. Machine

4шт.

51

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Lg. Cotter Pin

8шт.

52

NSS

NOT SOLD SEPARAT

1шт.

53

14710814

SMALL PIN

1/4" x 1-3/4" Lg Klik

1шт.

54

NSS

NOT SOLD SEPARAT

1/8" NPT Straight Zerk

7шт.

55

09961530

SHIM

0.12 Thk

1шт.

56

16014105

BOLT

7/8" x 2-1/2" NC Capscrew Gd. 5

4шт.

57

NSS

NOT SOLD SEPARAT

5/8" x 2-1/2" NC Capscrew

4шт.

58

NSS

NOT SOLD SEPARAT

5/8" x 2-1/2" NC Hex. Nut

4шт.

59

17411012

WASHER

5/8" Heavy

8шт.

60

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

61

NSS

NOT SOLD SEPARAT

1/2" NC Jam Nut

1шт.

62

NSS

NOT SOLD SEPARAT

1/2" Std. Washer ZP

2шт.

63

09580322

PLUG

1/2" Heat Treated Bushing

2шт.

64

14816382

SMALL PIN

1" x 3-3/4"

2шт.

65

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

5/8'' x 3-1/8'' EL Clevis Pin

2шт.
