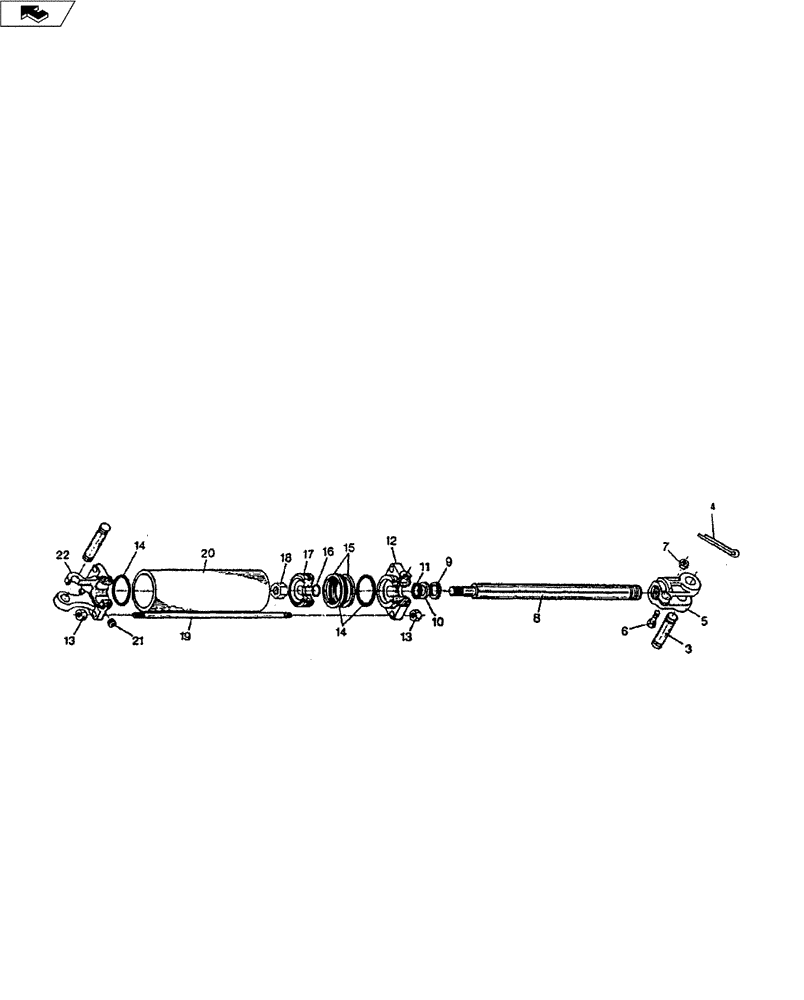

Запчасти Case IH TIGER-TWO (35.100.04) - HYDRAULIC CYLINDER ASSY (35) - HYDRAULIC SYSTEMS

1

25030160

CYLINDER ASSY.

3"x16" Hydraulic - SAE Ports

1шт.

1

25330160R

REMAN-HYD CYLINDER

TIGER-TWO®, DMI RIPPER, 3"x16" Hydraulic - SAE Ports, Reman for New PN 25030160

1шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

1шт.

2

25803035

KIT

Seal for 3" Bore w/1-1/2"Dia. Rod

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3"

2шт.

4

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

2шт.

5

25803030

CLEVIS

Casting (Rod)

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802521

SHAFT

1-1/4" Dia Rod for 16" Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (See Ref. 2)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (See Ref. 2)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

1шт.

12

25803025

SHAFT

Cylinder Head 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NF Hex. Nut, Gd. 5

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (See Ref. 2)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

1шт.

17

25803003

SHAFT

Piston

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25803036

THREADED TIE-ROD

4шт.

20

25803037

BARREL

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803026

SHAFT

Cylinder Base

1шт.
