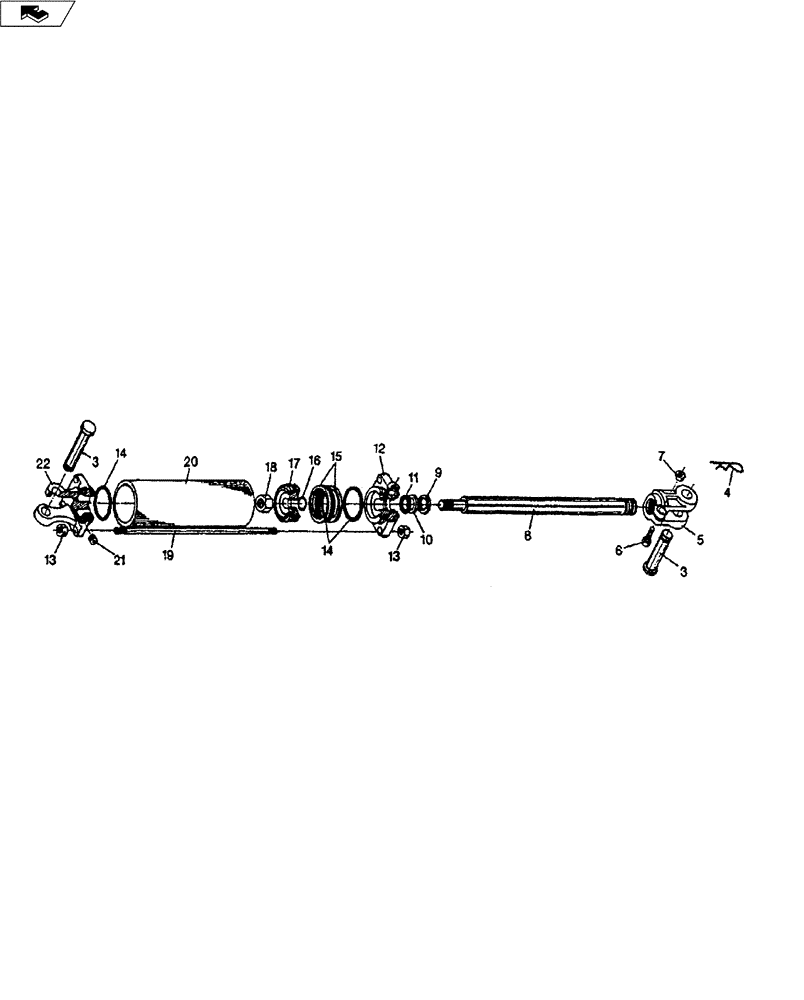

Запчасти Case IH TIGER-TWO (35.100.03) - HYDRAULIC CYLINDER ASSY (35) - HYDRAULIC SYSTEMS

1

25030082

HYDRAULIC CYLINDER

3"X8" - SAE Ports

1шт.

2

25803007

KIT

Seal - 1-1/4"Dia.Rod

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3"

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin

2шт.

5

25803001

SHAFT

Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802503

1-1/4" Dia. Rod - 1-1/16" UNF Threads

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (See Ref. 2)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (See Ref. 2)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

1шт.

12

25803029

SHAFT

Cylinder Head - 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NF Hex. Nut, Gd. 5

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (See Ref. 2)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

1шт.

17

25803003

SHAFT

Piston

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

NSS

NOT SOLD SEPARAT

Tie Rod

4шт.

20

NSS

NOT SOLD SEPARAT

Barrel

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803026

SHAFT

Cylinder Base - 3/4" SAE Ports

1шт.
