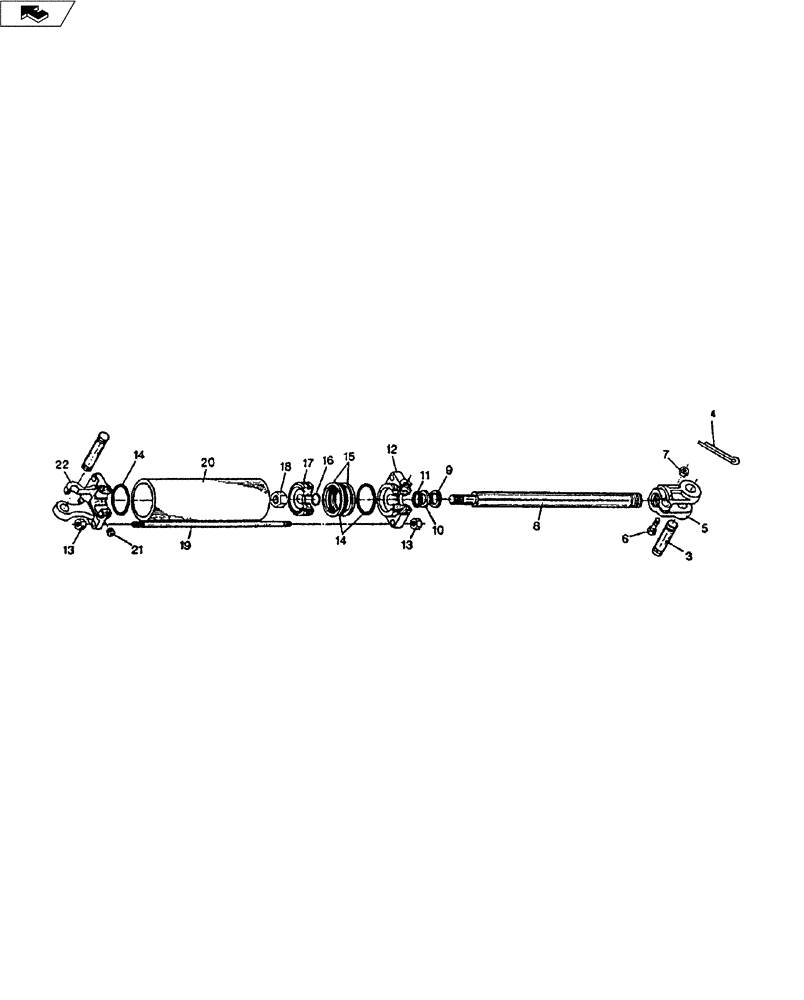

Запчасти Case IH TIGER-TWO (35.100.02) - HYDRAULIC CYLINDER ASSY (35) - HYDRAULIC SYSTEMS

1

25025162

CYLINDER

2-1/2" x 16" Hydraulic - SAE Ports

1шт.

2

25802510

KIT

Seal for 2-1/2" Bore w/1-1/4" Dia. Rod

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3"

2шт.

4

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

2шт.

5

25803001

SHAFT

Clevis Casting (Rod)

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802521

SHAFT

1-1/4" Dia. Rod for 16" Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (See Ref. 2)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (See Ref. 2)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

1шт.

12

25802513

HOSE ASSY.

Cylinder Head

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NF Hex. Nut, Gd. 5

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (See Ref. 2)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (See Ref. 2)

1шт.

17

25802514

SHAFT

Piston

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25802522

THREADED TIE-ROD

4шт.

20

25802523

BARREL

For 2-1/2" x 16" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

9/16" SAE Plug

1шт.

22

25802534

SHAFT

Cylinder Base - 9/16" SAE Ports

1шт.
