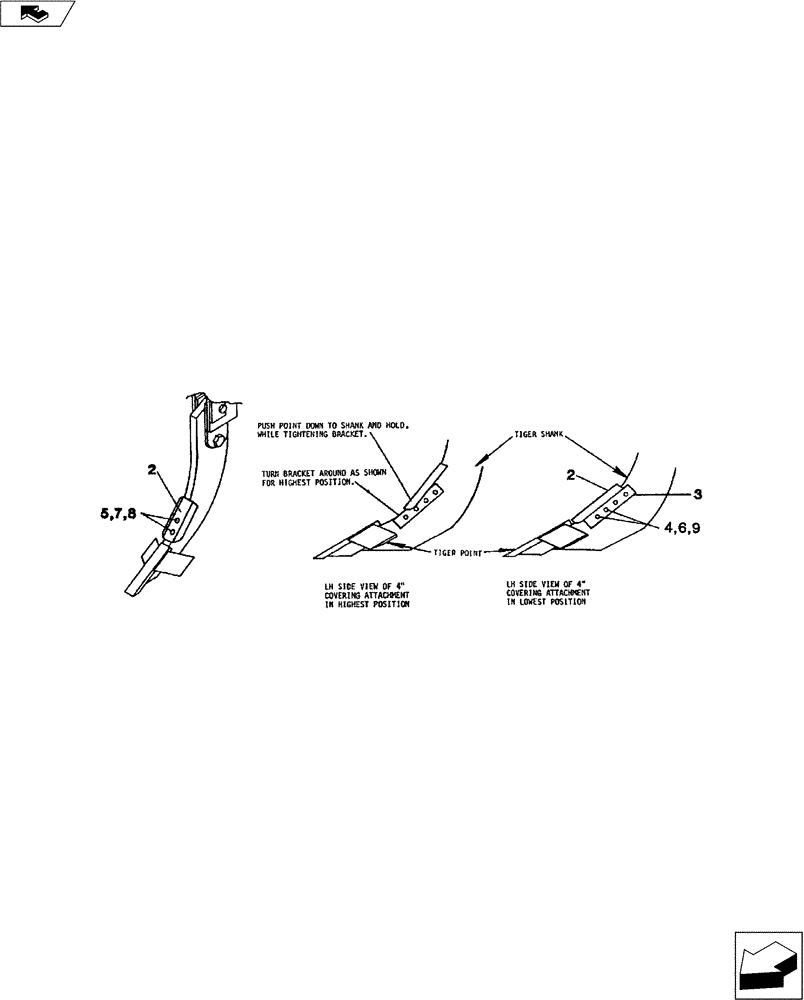

Запчасти Case IH TIGER-TWO (75.200.05) - COVERING ATTACHMENT (OPTIONAL) 4 COVERING ATTACHMENT (75) - SOIL PREPARATION

1

09990040

MOLDBOARD

4" Covering Attachment Kit Complete (Not Shown)

1шт.

2

33310076

LANDSIDE

4" Covering Point With Hardware

1шт.

3

09965000

BRACKET

1шт.

4

16008115

BOLT

1/2" x 3/4" NC Gd. 5

2шт.

5

16207050

BOLT

7/16" x 1-1/4" NC Plow Gd. 8

2шт.

6

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

7

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

2шт.

8

NSS

NOT SOLD SEPARAT

7/16" Lock Washer

2шт.

9

NSS

NOT SOLD SEPARAT

1/2" Flat Washer

2шт.
