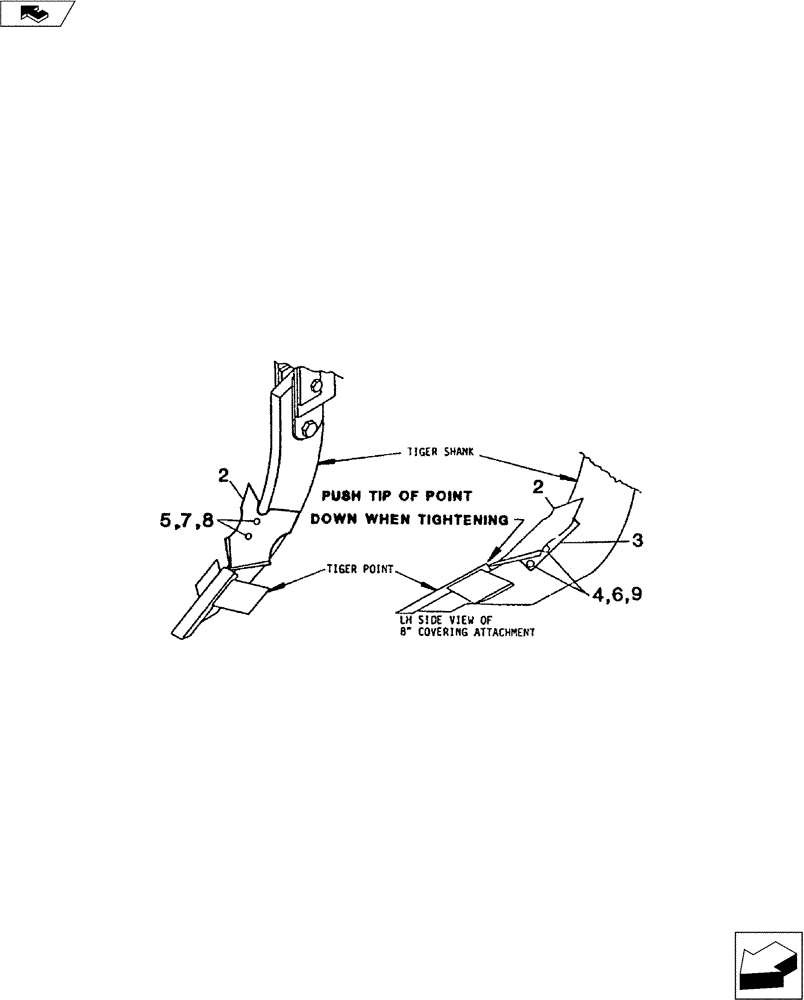

Запчасти Case IH TIGER-TWO (75.200.04) - COVERING ATTACHMENT (OPTIONAL) 8 COVERING ATTACHMENT (75) - SOIL PREPARATION

1

09990030

MOLDBOARD

8" Covering Attachment Kit Complete (Not Shown), Serial Range: - 2 1 33310070 MOLDBO

1шт.

2

33310070

MOLDBOARD

8" Covering Point With Hardware, Serial Range: - 2 1 33310070 MOLDBO

1шт.

3

09965000

BRACKET

1шт.

4

16008115

BOLT

1/2" x 3/4" NC Gd. 5

2шт.

5

16207050

BOLT

7/16" x 1-1/4" NC Plow Gd. 8

2шт.

6

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

7

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

2шт.

8

NSS

NOT SOLD SEPARAT

7/16" Lock Washer

2шт.

9

NSS

NOT SOLD SEPARAT

1/2" Flat Washer

2шт.
