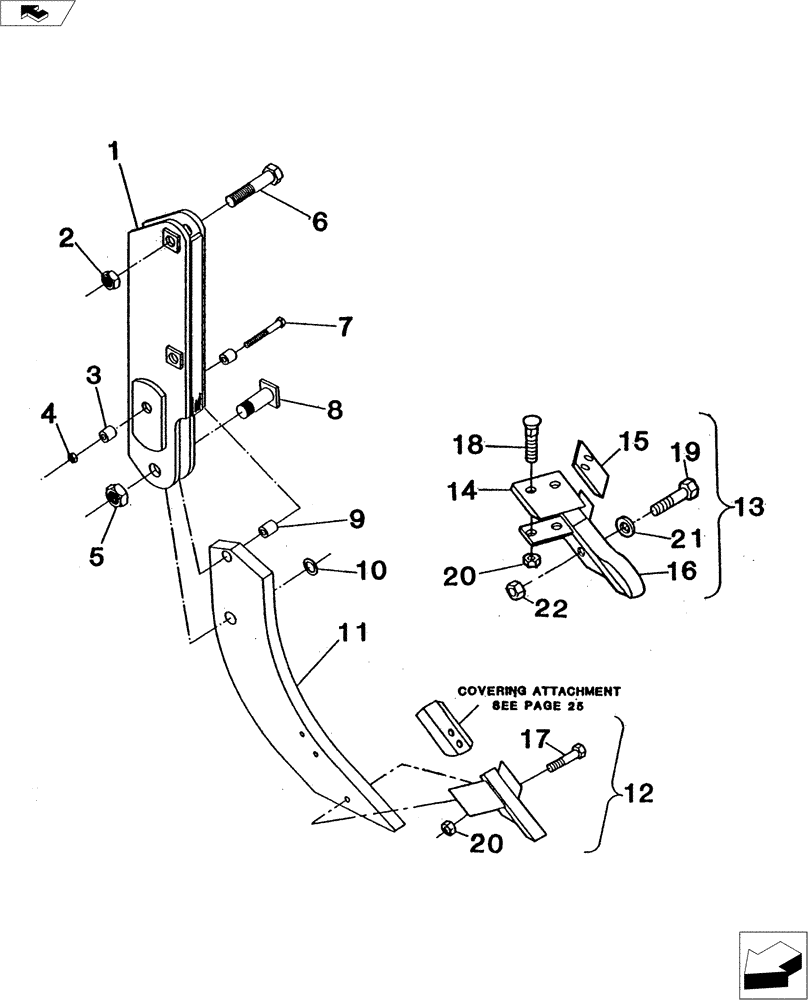

Запчасти Case IH TIGER-TWO (75.200.03) - SHEAR BOLT SHANK ASSY (75) - SOIL PREPARATION

1

09966000

BRACKET

Shear Bolt Beam

1шт.

2

NSS

NOT SOLD SEPARAT

1 1/4" NC Hex. Nut

1шт.

3

44006520

BUSHING

1 5/16"

2шт.

4

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

5

NSS

NOT SOLD SEPARAT

1 1/2" NC Jam Nut

1шт.

6

16902035

1 1/4" x 6" NC

2шт.

7

16010205

BOLT

5/8" x 5" NC Gd. 5 Shear

1шт.

8

16902416

SPECIAL BOLT

1 1/2" x 4" NC

1шт.

9

44006530

BUSHING

1 1/2"

1шт.

10

17624021

BUSHING

1 1/2" Machinery

1шт.

11

09961105

SHANK

Hard Surfaced With Bushing

1шт.

12

09907000

POINT

Tiger Assy.

1шт.

13

09907001

POINT

Tiger Assy. - Heavy Duty

1шт.

14

09907002

FRAME

RH. Wing, Includes Ref. 14, 18, 20

1шт.

15

09907003

FRAME

LH. Wing Includes Ref. 15, 18, 20

1шт.

1

09907004

POINT

Tiger Includes Ref. 16, 19, 21, 22

1шт.

17

16008114

BOLT

1/2" x 2 3/4" NC Gd 5

1шт.

18

NSS

NOT SOLD SEPARAT

1/2" x 1 1/2" Plow Bolt

4шт.

19

16008125

BOLT

1/2" x 3" NC Gd. 5

1шт.

20

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

4шт.

21

NSS

NOT SOLD SEPARAT

1/2" Standard Washer

1шт.

22

NSS

NOT SOLD SEPARAT

1/2"NC Heavy Nut

1шт.

23

09900080

BEAM ASSY.

Includes 1 - 11

1шт.
