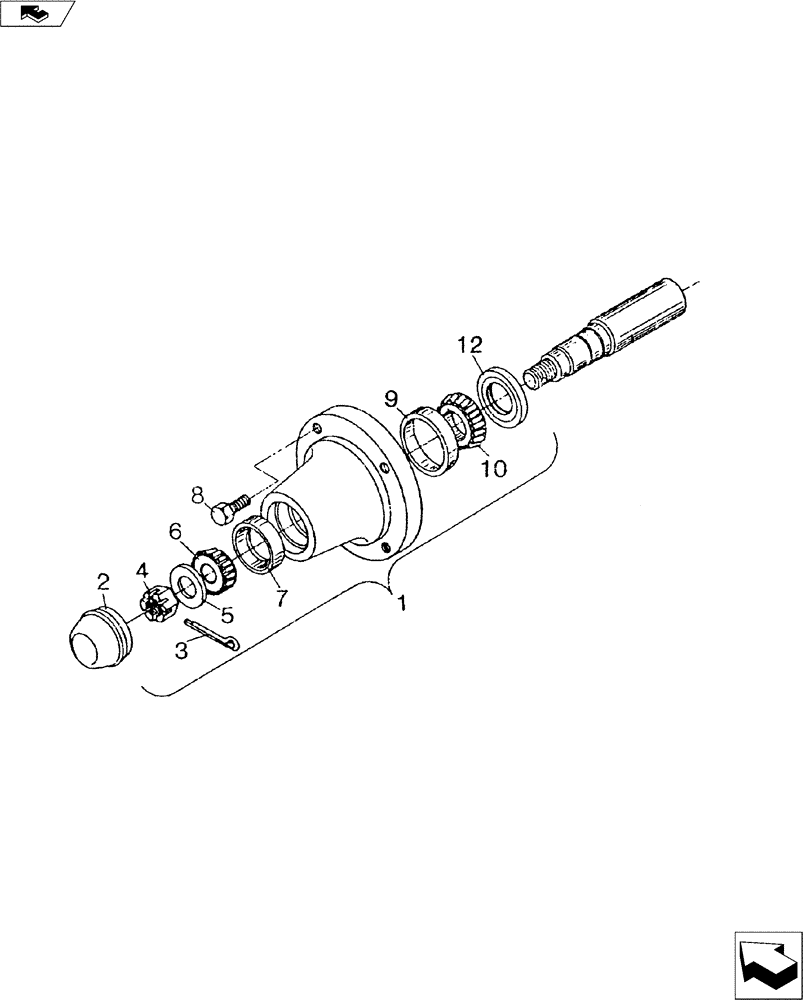

Запчасти Case IH TIGER-TWO (44.100.04) - 633 HUB & SPINDLE ASSY (44) - WHEELS

1

28613310

633 4-Bolt W/Flat Head Bolts

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

1шт.

6

21870750

BEARING CONE

0.75" Bore - Timken #LM114949

1шт.

7

21881780

BEARING CUP

1.78" O.D - Timken #LM11910

1шт.

8

16008057

BOLT

1/2" x 1-1/4" NF Flat Head

4шт.

9

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D. - Timken #LM67010

1шт.

10

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore - Timken #LM67048

1шт.

11

28063321

HUB ASSY.

Spindle W/Flat Head Bolts (Not Shown), Spindle O.A.L. 7-19/32"

1шт.

12

21931501

SEAL ASSY.

1.50" I.D. x 2.33" O.D. - CR #14975

1шт.
