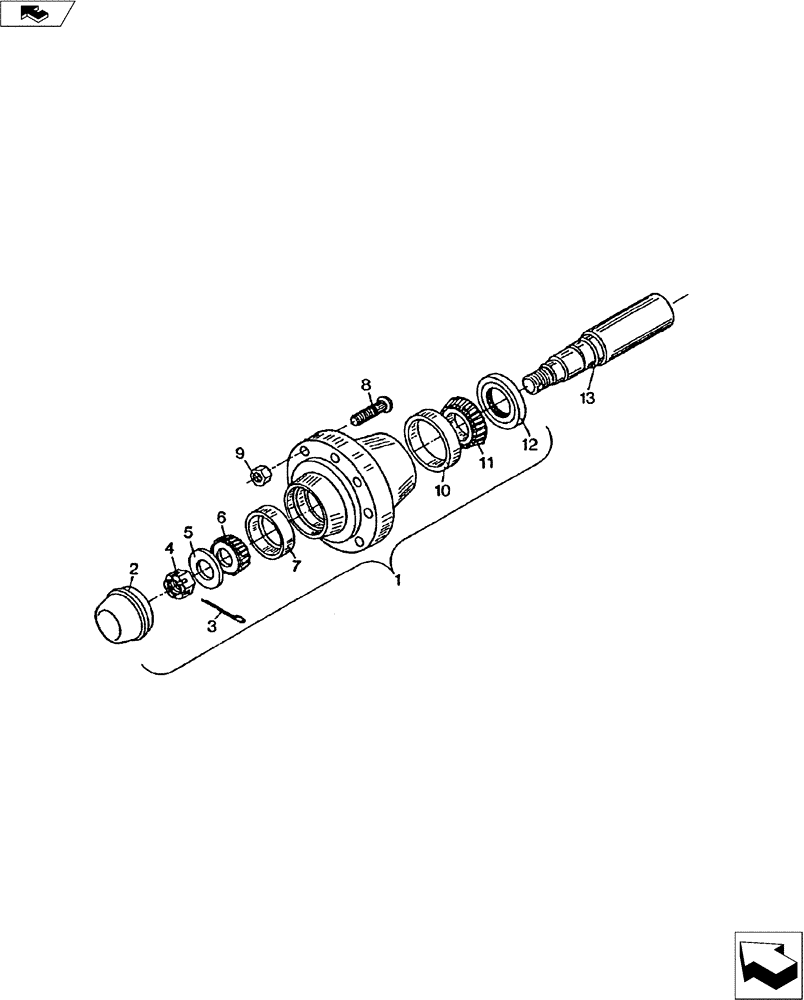

Запчасти Case IH TIGER-TWO (44.100.03) - 819 HUB & SPINDLE ASSY (44) - WHEELS

1

28681900

HUB ASSY.

Q-819 8-Bolt Incl 2 - 12

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

21871310

BEARING CONE

1.31" Bore - Timken #2790

1шт.

7

21883000

BEARING, CUP,76.2125 mm OD x 23.9135 mm

3.00" O.D. - Timken #2720

1шт.

8

16409093

STUD

9/16" x 2-1/2" Wheel Bolt

8шт.

9

14080903

SPECIAL NUT

9/16" x 18 Wheel

8шт.

10

21883670

CUP

3.67" O.D. - Timken #3720

1шт.

11

21872000

BEARING, CONE

2.00" Bore - Timken #I3780

1шт.

12

21932500

SEAL

2.50" I.D. X 3.75" O.D.

1шт.

13

28382111

CONCAVE

Spindle

1шт.
