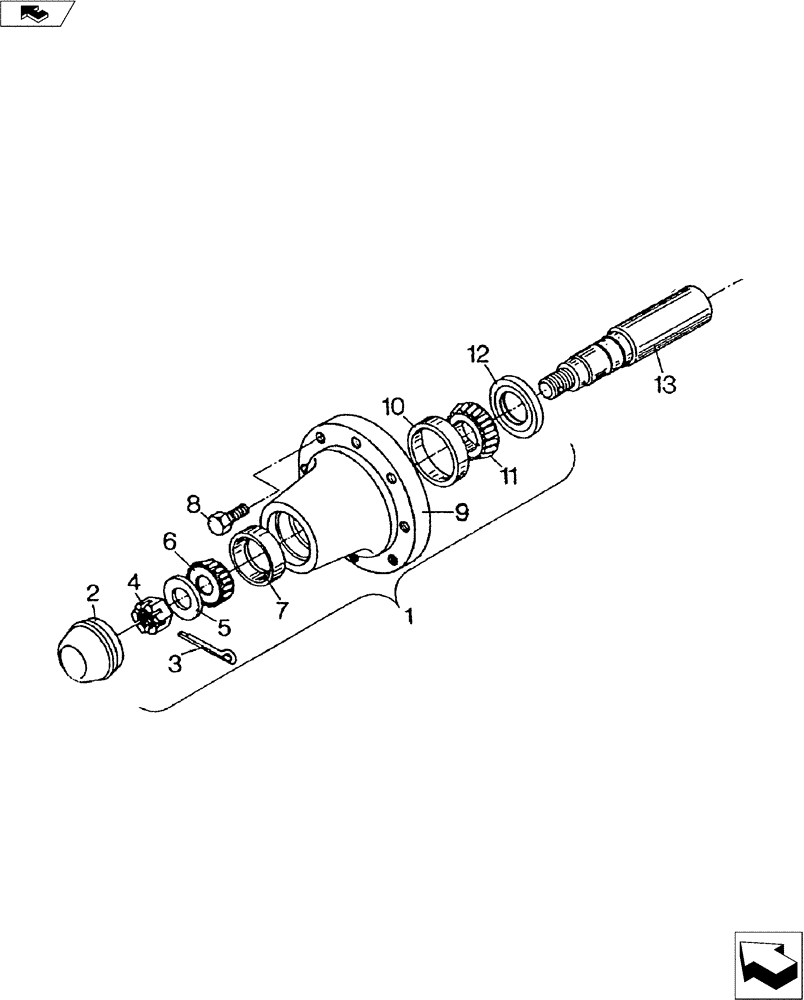

Запчасти Case IH TIGER-TWO (44.100.02) - 778 HUB & SPINDLE ASSY (44) - WHEELS

1

28177800

HUB ASSY.

Q778 8-Bolt

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

21871381

BEARING CONE

1-3/8" Bore - Timken #25877

1шт.

7

21882880

BEARING CUP

2.875" O.D. - Timken #25821

1шт.

8

16409053

SPECIAL BOLT

9/16" NF x 1-1/8" Lug

8шт.

9

NSS

NOT SOLD SEPARAT

Q778 8-Bolt Hub Only

1шт.

10

21883270

BEARING CUP

3.27" O.D. - Timken #25520

1шт.

11

21871800

BEARING CONE

1.80" Bore - Timken #25590

1шт.

12

21932000

SEAL

2.00" I.D. x 3.63" O.D. - CR #521430

1шт.

13

28377801

SPINDLE

1шт.

14

28077811

HUB ASSY.

Spindle - Straight (Not Shown)

1шт.
