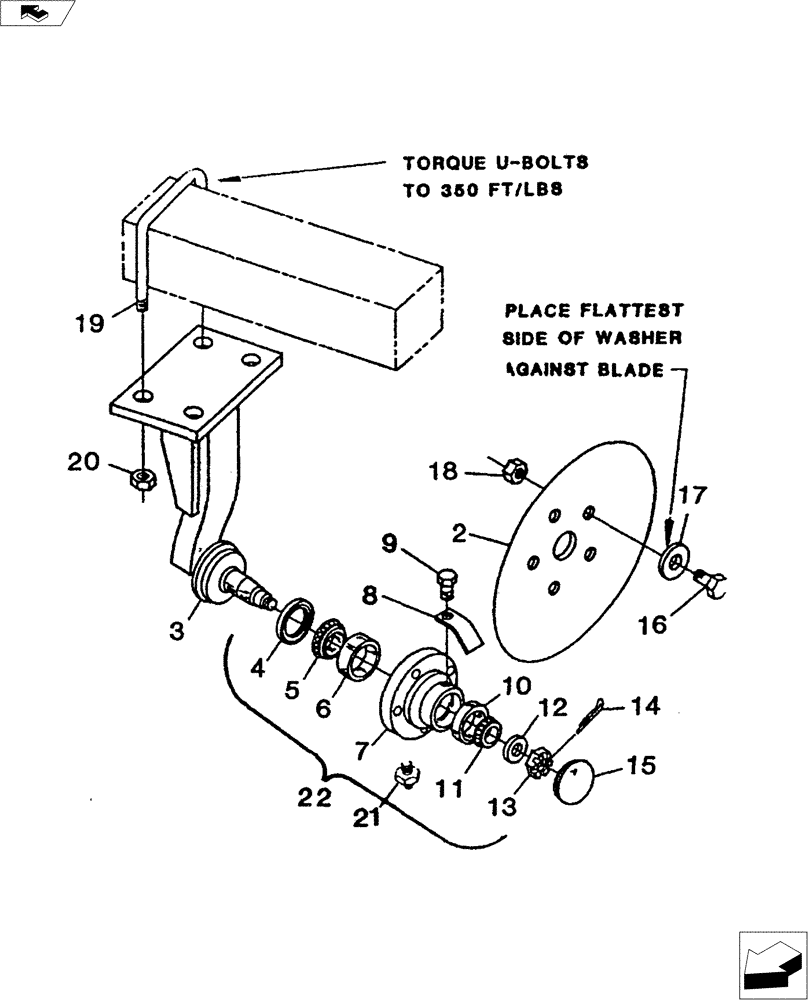

Запчасти Case IH TIGER-TWO (44.100.01) - DISC HUB ASSY (44) - WHEELS

1

09970700

CENTRALIZER

Disc Mount

1шт.

1

09970800

MOUNTING PARTS

Disc RH

1шт.

1

09970900

MOUNTING PARTS

Disc LH

1шт.

2

33552050

PLOW DISC

Blade

1шт.

2

33552055

DISK DRILL

1/4" Blade (Optional)

1шт.

3

09970701

FURROW WHEEL

Spindle Arm Weld - Center

1шт.

3

09970801

FURROW WHEEL

Spindle Arm Weld - RH

1шт.

3

09970901

FURROW WHEEL

Spindle Arm Weld - LH

1шт.

4

21931875

OIL SEAL

3.00" O.D. - Carbox #115

1шт.

In an emergency Chicagor Rawhide Seal #I8823 may be used.

1шт.

5

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1.62" - Timken #LM501349

1шт.

6

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89" O.D. - Timken #LM501310

1шт.

7

28705000

DISC

Hub W/Cups

1шт.

8

09970770

RETAINER

Dust Cap

1шт.

9

16004025

BOLT

1/4" x 1/2" NC Gd. 5, Use With Original Hub 28705000

1шт.

9

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

Use With Sub To Hub 28705006

1шт.

10

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D. - Timken #LM67010

1шт.

11

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" - Timken #LM67048

1шт.

12

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8" Heavy

1шт.

13

14051403

NUT

7/8" NF Slotted

1шт.

14

NSS

NOT SOLD SEPARAT

5/32" x 2" Cotter Pin

1шт.

15

28490001

HUB CAP

Dust

1шт.

16

16008088

BOLT

1/2" x 1-3/4" NC Gd. 5

5шт.

17

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9-16" x 1-3/8" x 0.179"

5шт.

18

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

5шт.

19

16312230

U-BOLT

BOLT "U" 3/4" x 4" Sq. Gd. 7

2шт.

20

14001205

NUT

3/4" NC Hex. Gd. 5

4шт.

21

28199901

KIT

Hub Assy. Complete, Includes Ref. 4 - 15

1шт.
