(39.110.01) - JACK ASSY

Запчасти Case IH TIGER-TWO (39.110.01) - JACK ASSY (39) - FRAMES AND BALLASTING

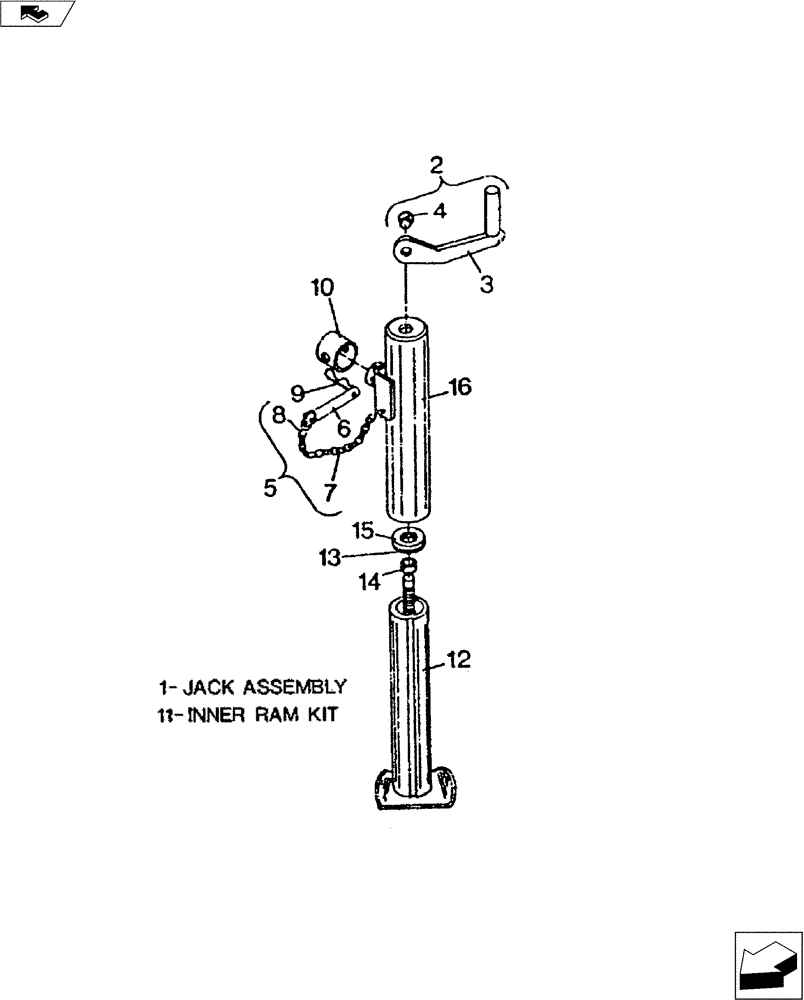

Схема запчастей Case IH TIGER-TWO - (39.110.01) - JACK ASSY (39) - FRAMES AND BALLASTING
5
7
13
14
9
16
4
3
6
2
8
1
15
12
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

32220000

JACK

2000

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement Kit, Includes Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

32250225

1шт.

5

32220001

REPAIR KIT

Locking Pin, Includes Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

Locking Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Chain

1шт.

8

NSS

NOT SOLD SEPARAT

S-Hook

2шт.

9

NSS

NOT SOLD SEPARAT

Hair Pin

1шт.

10

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting Bracket

1шт.

11

32220002

CYLINDER ASSY.

lnner Ram Kit, Includes Ref. 4, 13-15

1шт.

12

NSS

NOT SOLD SEPARAT

lnner Ram

1шт.

13

21870751

WASHER, THRUST

1шт.

14

32220004

1шт.

15

21890750

THRUST BEARING

1шт.

16

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.
