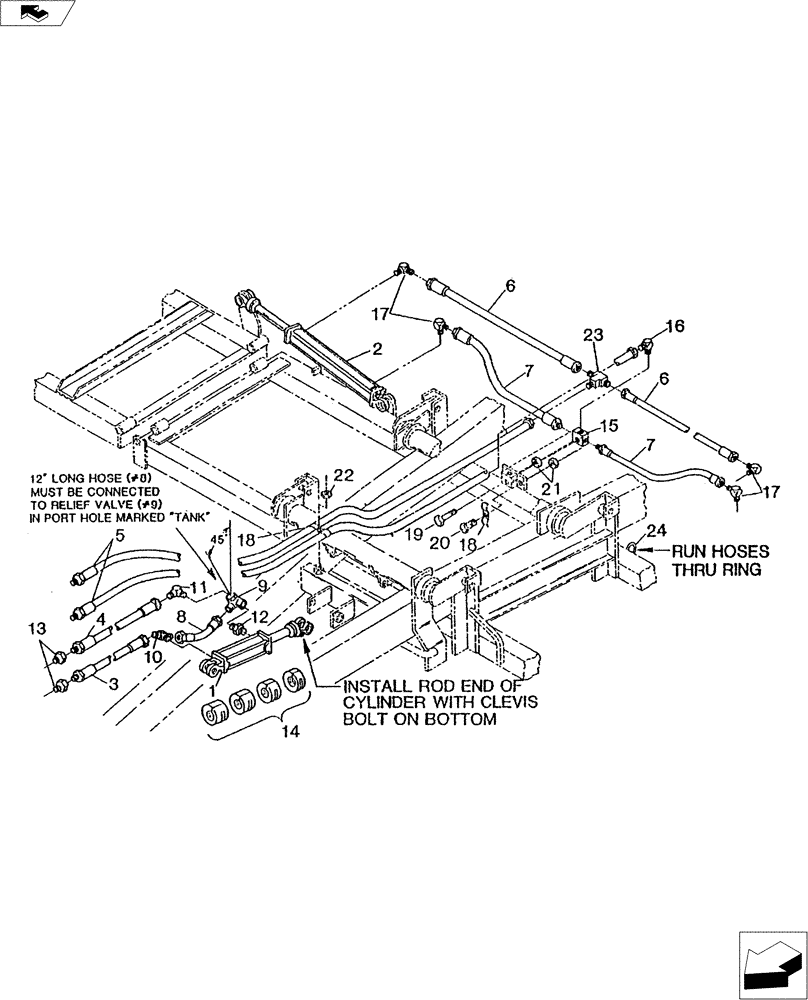

Запчасти Case IH TIGER-TWO (39.100.04) - DISC ATTACHMENT HYDRAULICS (39) - FRAMES AND BALLASTING

1

25030082

HYDRAULIC CYLINDER

3" x 8"

1шт.

2

25025162

CYLINDER

2-1/2" x 16" Hydraulic (7 Shank)

2шт.

3

25600688

HOSE

3/8" Hydraulic x 110" Long

1шт.

4

25600680

HOSE ASSY.

3/8" Hydraulic x 118" Long

1шт.

5

25600693

HOSE ASSY.

3/8" Hydraulic x 178" Long (7 Shank)

2шт.

6

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

Long (7 Shank)

2шт.

7

25600638

HOSE

3/8" Hydraulic x 36" Long (7 Shank)

2шт.

8

25600813

HOSE ASSY.

3/8" Hydraulic x 12" Long

1шт.

9

25405022

VALVE PRESSURE RELIE

1шт.

10

25707522

3 WAY CONNECTION

(2) 3/4" SICM x 3/4" SAEM Tee

1шт.

11

25707528

ELBOW

7/8" SAEM x 3/4" JICM 90°

1шт.

12

25707526

FITTING

3/4" SAEM x 7/8" SAEM Adapter

1шт.

14

25800010

CYLINDER

Stroke Kit 1-1/4"

1шт.

15

25401253

FLOW DIVIDER

White (7 Shank)

1шт.

16

25707511

ELBOW

3/4" JICM - 1/2" NPTM (7 Shank)

1шт.

17

25705601

ELBOW

9/16" SAEM x 3/4" JICM 90° (7 Shank)

4шт.

18

22530601

HOSE CLAMP

Double (7 Shank)

3шт.

19

NSS

NOT SOLD SEPARAT

3/8" x 2" NC Capscrew (7 Shank)

1шт.

20

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" NC Capscrew (7 Shank)

2шт.

21

NSS

NOT SOLD SEPARAT

3/8" NC Hex Nut (7 Shank)

3шт.

22

NSS

NOT SOLD SEPARAT

5/16" NC Hex Nut (7 Shank)

1шт.

23

25707518

3 WAY CONNECTION

3/4" JICM Tee (7 Shank)

1шт.
