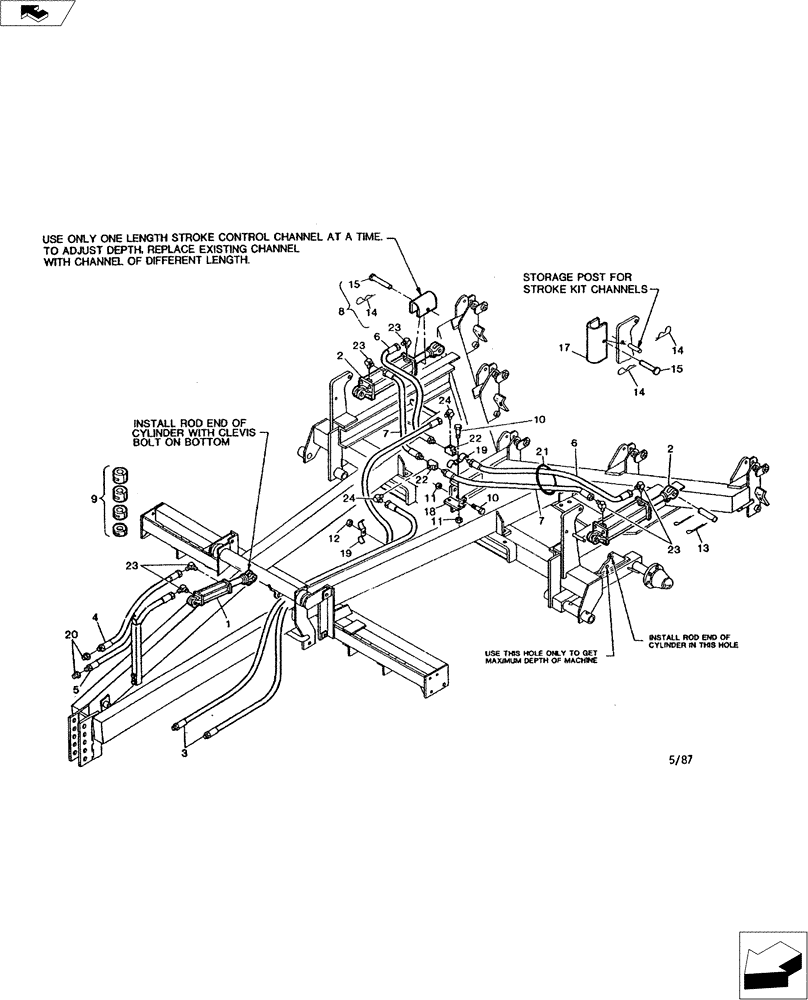

Запчасти Case IH TIGER-TWO (39.100.03) - HYDRAULIC ASSY WITH COULTER ATTACHEMENT (39) - FRAMES AND BALLASTING

1

25025084

CYLINDER ASSY.

2-1/2" X 8" Hydraulic Assy.

1шт.

2

25025162

CYLINDER

2-1/2" x 16" Hydrauic Assy. (5 Shank)

2шт.

2

25030160

CYLINDER ASSY.

3" x 16" Hydraulic Assy. (7 Shank)

2шт.

2

25330160R

REMAN-HYD CYLINDER

TIGER-TWO®, DMI RIPPER, 3" x 16" Hydraulic Assy. (7 Shank), Reman for New PN 25030160

2шт.

2

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

3

25600890

HOSE

1/2" Hydraulic x 184" Long

2шт.

4

25600680

HOSE ASSY.

3/8" Hydraulic x 118" Long

1шт.

5

25600688

HOSE

3/8" Hydraulic x 110" Long

1шт.

6

25600663

HOSE

3/8" Hydraulic x 60" Long

2шт.

7

25600656

HOSE

3/8" Hydraulic x 55" Long

2шт.

8

09900245

KIT

Stroke (1-1/2" Rod) - Use on 3" x 16" Hydraulic Cylinder Only

2шт.

8

09900855

Stroke (1-1/4" Rod) - Use on 2-1/2" x 16" Hydraulic Cylinder Only

2шт.

9

25800010

CYLINDER

Stroke Kit (1-1/4" Rod) - Coulter Frame

1шт.

10

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" NC Capscrew

3шт.

11

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

3шт.

12

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

3шт.

13

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

8шт.

14

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

6шт.

15

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" EL Clevis

4шт.

17

01400640

KIT

Cylinder Stop (Transport)

2шт.

18

09962500

FLOW DIVIDER

Bracket

1шт.

19

25530601

CLAMP

Double Hose

5шт.

20

15030503

ADAPTER

3/8" NPFT x 1/2" NPTM

2шт.

21

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 24" Plastic Hose Tie

2шт.

22

15050371

TEE

3/8" NPTF

1шт.

23

25707521

ELBOW

3/4" SAEM x 3/4" JICM (3" x 16" Hydraulic Cylinder)

4шт.

23

25705601

ELBOW

9/16" SEM x 3/4" JICM (2-1/2" x 16" Hydraulic Cylinder)

6шт.

24

25707529

ELBOW

7/8" JICM x 3/8" NPTM

2шт.
