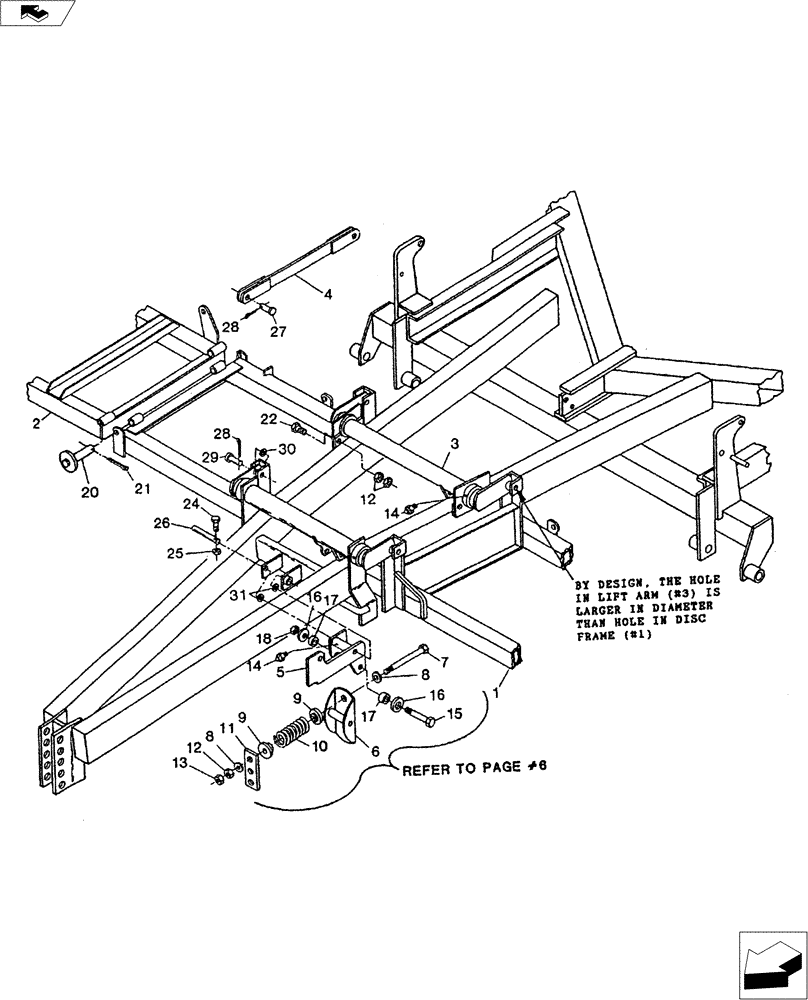

Запчасти Case IH TIGER-TWO (39.100.02) - DISC ATTACHMENT (39) - FRAMES AND BALLASTING

1

09970100

FRAME

Disc - 5 Shank

1шт.

1

09970200

Disc - 7 Shank

1шт.

2

09970300

FRAME

Disc Wing RH (7 Shank)

1шт.

2

09970400

FRAME

Disc Wing LH (7 Shank)

1шт.

3

09970500

BAR ASSY.

Rear Lift Tube - Serial No. 902349 and Before

1шт.

3

09970650

BAR ASSY.

Rear Lift Tube - Serial No. 022441 and After

1шт.

4

84401370

LINKAGE

Lift

1шт.

5

09971000

LINK

Assembly

1шт.

6

09580340

PIVOT

Spring Weld

1шт.

7

16901272

BOLT

3/4" x 20" NC

2шт.

8

17413011

WASHER

1/4" Thick ZP

4шт.

9

20090090

SPRING BOX

Casting

4шт.

10

24162502

COMPRESSION SPRING

2шт.

11

09971010

SPACER

Spring (5-Shank)

1шт.

11

09971010

SPACER

Spring (7-Shank)

2шт.

12

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

10шт.

13

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

2шт.

14

NSS

NOT SOLD SEPARAT

1/8" NPT Self Tapping Zerk

5шт.

15

16900828

CAPSCREW

1/2" x 7" Hex. Bolt, Gd. 5 ZP

1шт.

16

NSS

NOT SOLD SEPARAT

1/2" Std. Washer ZP

2шт.

17

09580322

PLUG

Hardened Bushing

2шт.

18

14010801

NUT

1/2" NC Lock

1шт.

19

NSS

NOT SOLD SEPARAT

1шт.

20

14816686

PIVOT PIN

Wing (7 Shank Only)

4шт.

21

NSS

NOT SOLD SEPARAT

1/4" x 2" Cotter Pin

4шт.

22

16012105

BOLT

3/4" x 2-1/2" NC Gd. 5 ZP

4шт.

24

16007105

BOLT

7/16" x 2-1/2" NC Gd. 5 ZP

1шт.

25

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

26

14892066

PIN

1-1/4" x 8-1/2" Lg.

1шт.

27

14816201

SMALL PIN

1"x2-3/32"

2шт.

28

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

6шт.

29

14816382

SMALL PIN

1" x 3-3/4"

4шт.

30

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1" Machine

12шт.

31

14010801

NUT

1/2'' NC Hex Nut Jam Nut

4шт.
