Запчасти Case IH ECOLO-TIGER 875 (75.200.AE[27]) - DISK TRUNNION RIGHT FRONT 7 BLADE (75) - SOIL PREPARATION

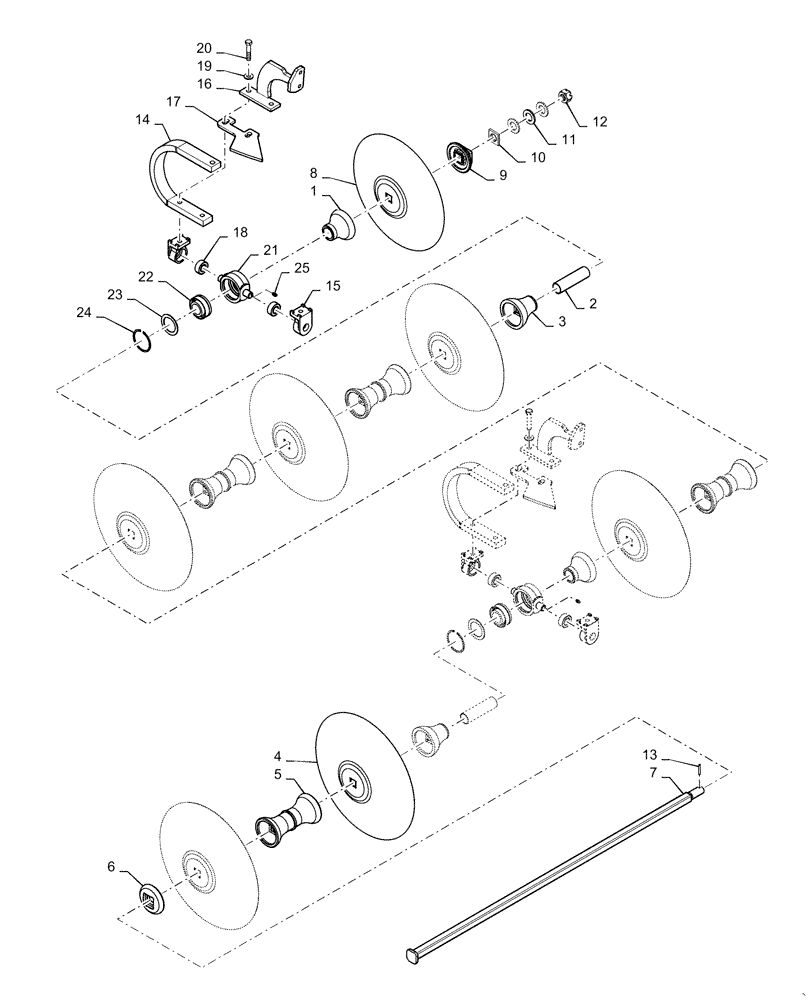

Схема запчастей Case IH ECOLO-TIGER 875 - (75.200.AE[27]) - DISK TRUNNION RIGHT FRONT 7 BLADE (75) - SOIL PREPARATION
21
8
22
2
1
19
13
16
23
24
20
7
5
6
3
18
10
9
15
12
4
25
17
14
11

Артикул

Название

Примечание

Количество

1

87471560

BEARING HOUSING

Spool Short 12" Heavy

2шт.

2

403922A1

SLEEVE,49.276mm ID x 55.17mm OD x 197mm L

Arbor Bolt Support

2шт.

3

87471561

BEARING HOUSING

Spool Long 12" Heavy

2шт.

4

58934C3

DISK HARROW

673 X 6.5 mm

6шт.

5

403931A1

SPOOL

Spacing 12" Heavy

4шт.

6

60615C1

WASHER

Head

1шт.

7

87407707

BOLT

7 Blade 12" Spacing

1шт.

8

87443004

PLOW DISC

24" X 6.5mm Sharp

1шт.

9

549973R2

SQ HOLE WASHER

1шт.

10

488836R2

NUT

Strip

1шт.

11

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1-1/2"

3шт.

12

84151572

SLOTTED NUT

1шт.

13

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

Spring

1шт.

14

87562228

SPRING

Bearing

1шт.

15

195109A1

TRUNNION

Pivot

2шт.

16

47478151

MOUNT

Scraper Right

1шт.

17

47478076

SCRAPER BLADE

Flat

1шт.

18

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Pivot

2шт.

19

84156178

WASHER,0.78" ID x 1.75" OD x 0.18" Thk

.781 X 1.750 X .179"

2шт.

20

50159

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

2шт.

21

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

1шт.

22

409556A1

BEARING, BALL,55.56mm ID x 110mm OD x 55.56mm W

1шт.

23

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

1шт.

24

87016938

SNAP RING,#433, 4.641", Int

1шт.

25

87414

LUBE NIPPLE,1/4" - 28

1шт.

Выбрано товаров: 25
