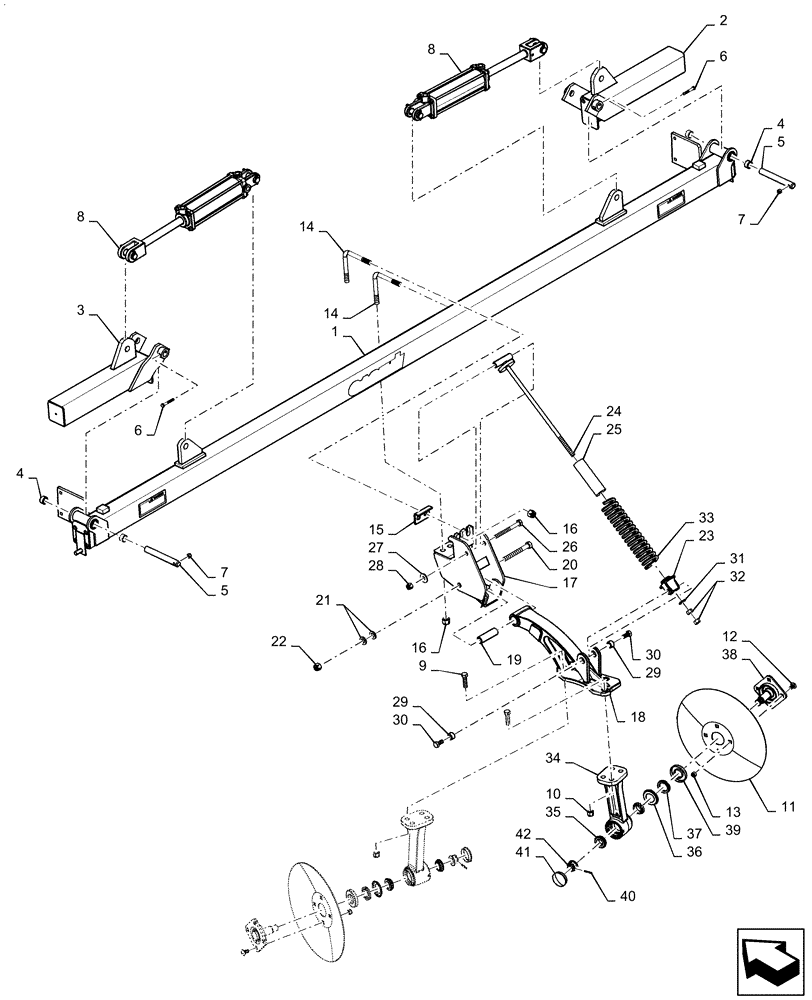

Запчасти Case IH ECOLO-TIGER 875 (75.200.AC[02]) - DISK LEVELER 9 SHANK 18 FOOT (75) - SOIL PREPARATION

1

84138909

FRAME

With Decals Painted

1шт.

2

87715320

FRAME

Right With Decals Painted

1шт.

3

87715321

FRAME

Left With Decals Painted

1шт.

4

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X .75"

4шт.

5

14891661

SPECIAL PIN,25.4mm OD x 204.7mm L

1 X 8.06"

2шт.

6

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

7

88902

NUT,3/8"-16

2шт.

8

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3.0 X 10 X 1.25"

2шт.

8

25330101R

REMAN-HYD CYLINDER

3.0 X 10 X 1.25"

2шт.

8

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

9

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

36шт.

10

85700693

NUT,5/8" - 11, Gr C

36шт.

11

84180366

DISK HARROW

459.75 X 63.5 X 3

18шт.

12

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

72шт.

13

280431

NUT,1/2"-13, G5

72шт.

14

87427192

SPECIAL BOLT

0.75 X 5.94"

20шт.

15

84575666

PLATE

L-Bolt Brace

10шт.

16

280375

NUT,3/4"-10, GC

40шт.

17

84567224

MOUNT

Lever Painted

1шт.

18

84249084

ARM

Cast Pivot

1шт.

19

87715895

SWIVEL PIVOT

1шт.

20

16901217

BOLT

.75 X 6"

1шт.

21

86624162

WASHER,0.81" ID x 1.5" OD x 0.18" Thk

2шт.

22

280375

NUT,3/4"-10, GC

1шт.

23

84129222

TRUNNION

Leveler Painted

1шт.

24

84408163

PIVOT

T-Bolt Leveler Painted

1шт.

25

84408160

SPACER,15.47mm ID x 50.8mm OD x 171.5mm L

Spring

1шт.

26

16901022

CAPSCREW,Hex, 5/8" - 11 x 6"

1шт.

27

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

28

85700693

NUT,5/8" - 11, Gr C

1шт.

29

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T

2шт.

30

280319

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5, Full Thd

2шт.

31

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

32

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

33

84408161

COMPRESSION SPRING

Compression

1шт.

34

84536515

HUB

Leveler Painted

1шт.

35

84356190

BEARING SET

2шт.

36

87421649

SEAL

Counter

1шт.

37

84325902

SEAL

Rubber

1шт.

38

84403369

SPINDLE

Painted

1шт.

39

87421650

SEAL RETAINER

1шт.

40

87020817

LOCK PIN,3/16" OD x 1-1/2" L, Slotted

1шт.

41

87473731

DUST CAP

Hub

1шт.

42

84402190

NUT

1-14

1шт.
