(55.511.AI[01]) - LIGHTING HARNESS FRONT

Запчасти Case IH ECOLO-TIGER 875 (55.511.AI[01]) - LIGHTING HARNESS FRONT (55) - ELECTRICAL SYSTEMS

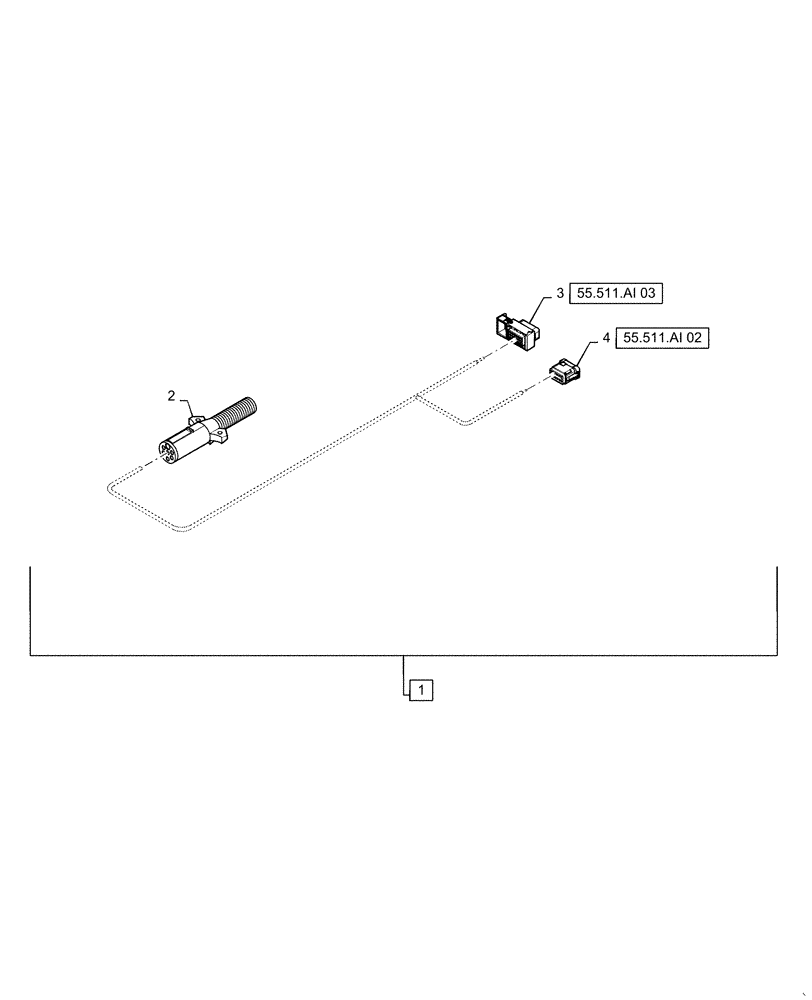

Схема запчастей Case IH ECOLO-TIGER 875 - (55.511.AI[01]) - LIGHTING HARNESS FRONT (55) - ELECTRICAL SYSTEMS
3
4
1
55.511.ai 02
55.511.ai 03
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47581810

WIRE HARNESS

Light Front, Incl. 2 - 4

1шт.

2

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

Tractor

1шт.

3

87699386

MULTIPOLE CONNECTOR,Female, 24 Pole

Logic Module

1шт.

4

84122168

ELEC CONNECTOR

Rear Connector

1шт.
